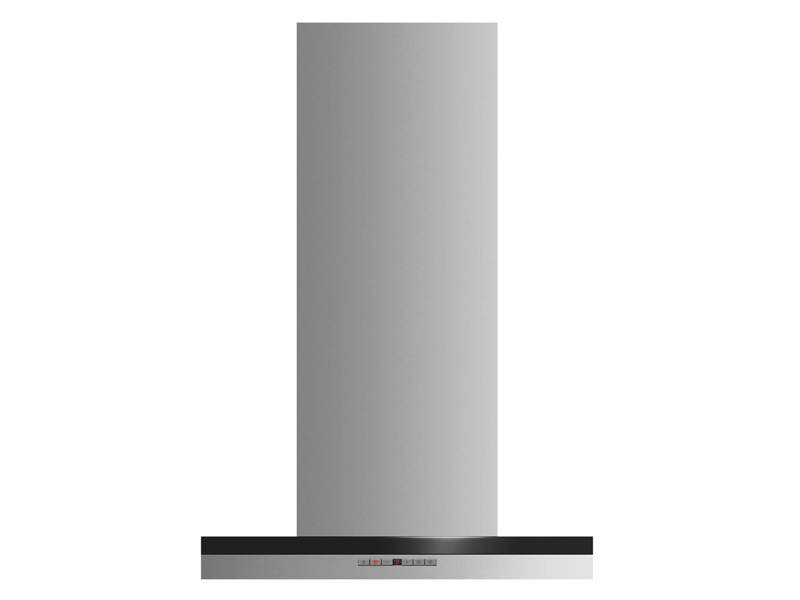

24" Fisher & Paykel Wall Chimney Vent Hood Box - HC24DTXB2

Category : Ventilation
SKU : HC24DTXB2


Literature

Wall Chimney Vent Hood, 24", Box

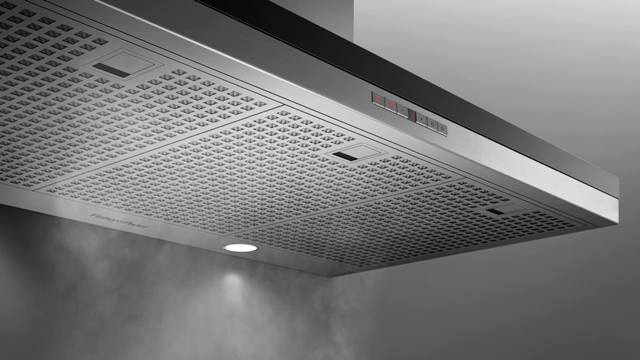

This Fisher & Paykel 24" wall chimney box vent hood quietly and efficiently removes steam and cooking odors.

Removable, easy to clean filters that effectively trap grease
An easy to use control panel
Four fan speeds for quick and effective extraction

Quiet and effective
This vent hood features four fan speeds providing powerful extraction to quickly remove odours and steam. Odors can linger in the kitchen well after cooking is finished so the timer keeps the vent hood working for up to 15 minutes before automatically turning off.


Simple to use

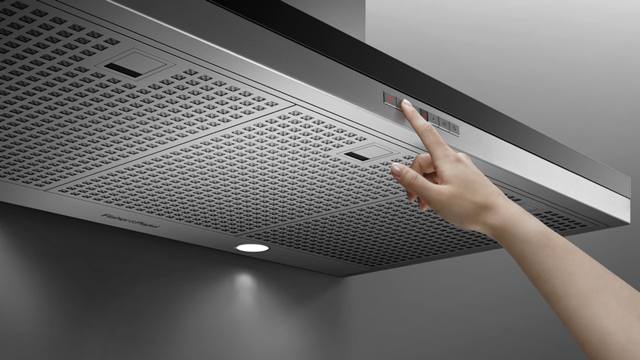

This Fisher & Paykel chimney range hood features a sleek and easy to use soft-touch control panel. This range hood’s LED lights provide bright, warm, energy efficient lighting ensuring the entire cooktop surface is illuminated.

Easy cleaning
The black glass and stainless steel finish is easily wiped clean. Multi-layered, dishwasher safe filters trap grease effectively and can easily be removed for cleaning.

Designed to match
This wall chimney vent hood's sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel's kitchen appliance family.

Dimensions
Depth 19 11/16"
Height23 3/4 - 41 1/16"
Width 23 9/16"
Fan ratings
Maximum air movement 600CFM
Maximum decibel rating67dBA
Speed 1 airflow 316CFM
Speed 1 sound rating 48dBA
Speed 2 airflow 432CFM
Speed 2 sound rating 58dBA
Speed 3 airflow 542CFM
Speed 3 sound rating 63dBA
Speed 4 airflow 600CFM
Speed 4 sound rating 67dBA
Performance
Extraction typeSurface
Filter type Mesh
Number of filters2
Speeds4
Installation
Air outlet 6"
Ducted Top extraction
Recirculation Optional - top extraction
Cleaning
Dishwasher safe filters 2
Optional accessories
Chimney extension 791774
Light bulb 792579
Recirculation carbon filter(s) 791772
Recirculation diverter 792580
Power requirement
Rated current5.2A
Supply frequency 60Hz
Supply voltage 120V
Total Power 542W
Details
UPC Code 822843500826
Warranty
Warranty2 years parts & labor
CONTROLS
Control typeSoft-touch button
Light type LED 2 x 6W
