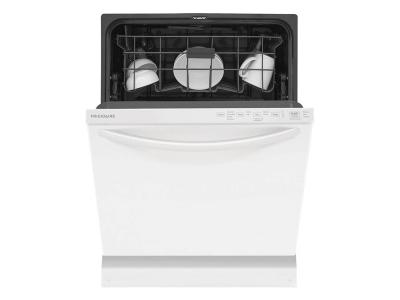

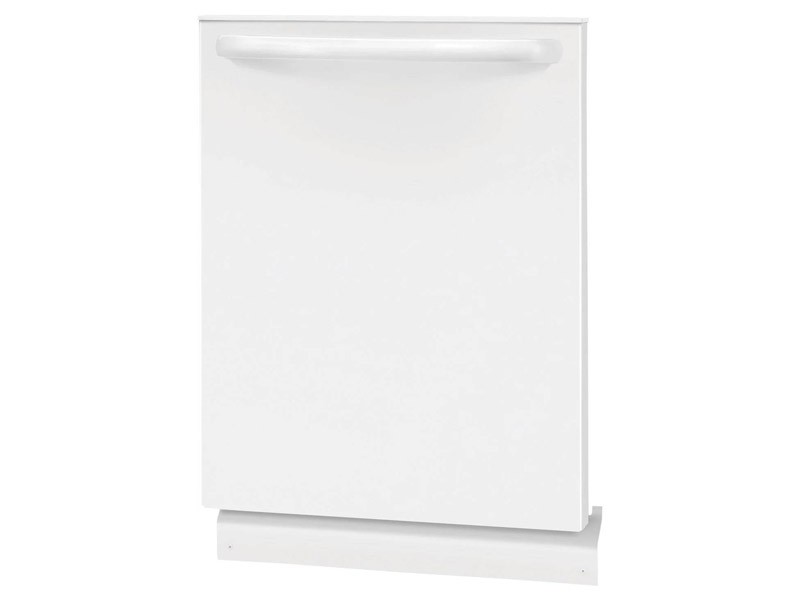

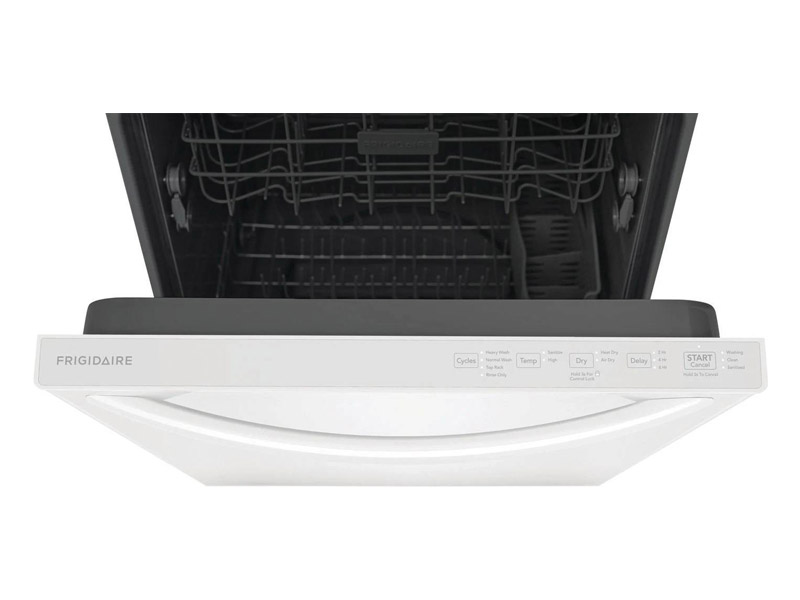

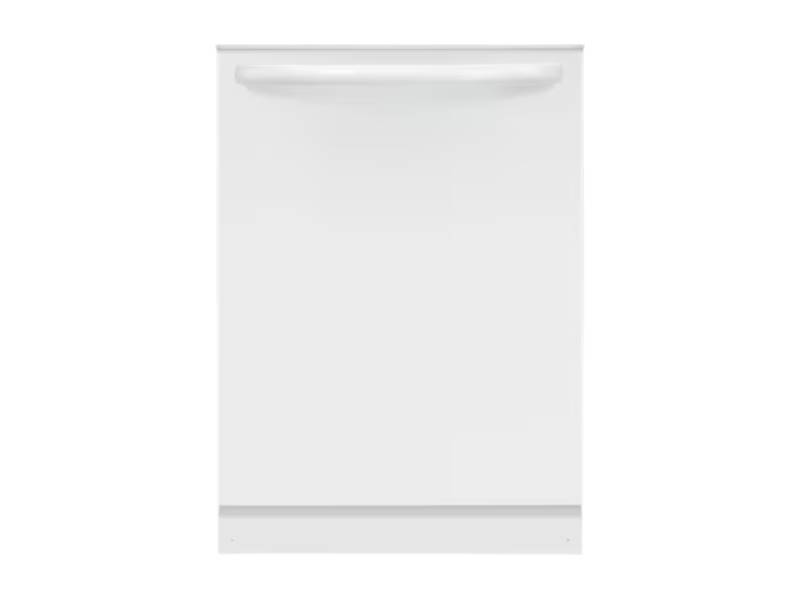

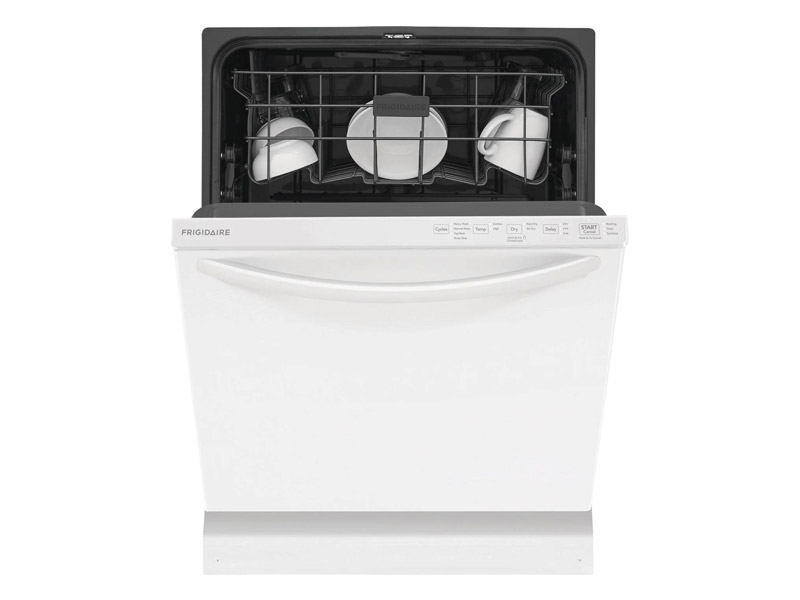

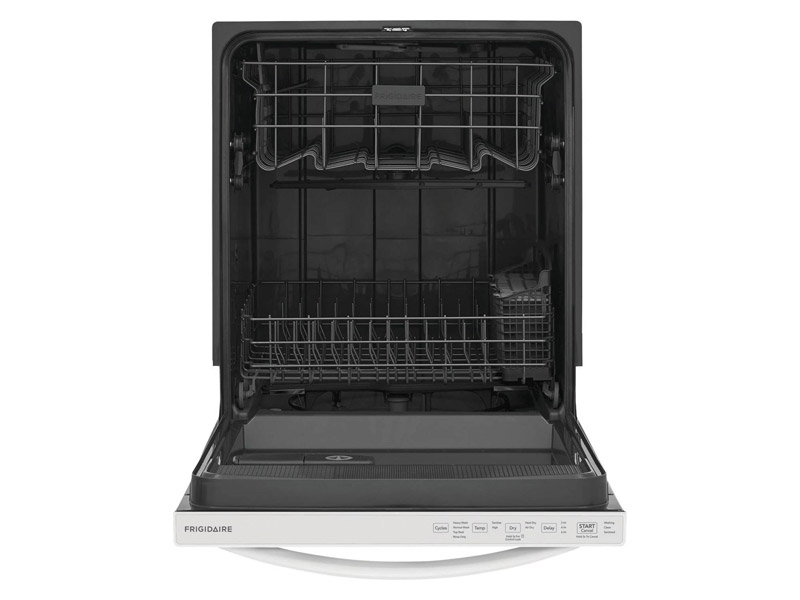

24" Frigidaire Built-in Dishwasher in White - FDPH4316AW
24" Frigidaire Built-In Dishwasher in Stainless Steel - FDPH4316AS
24" Frigidaire Built-in Dishwasher in White - FDPH4316AW
![](/img/brandlogo/13_a_19_frigidaire.png)
Features
![](/desc_images/7803/FDPH4316AW_0.jpg)
Triple the cleaning power
Give your dishes a more effective clean with our three spray arms, which achieve better water coverage during the cleaning cycle.
![](/desc_images/7803/FDPH4316AW_1.jpg)
Enhanced drying results with MaxDry
Get an enhanced dry with the MaxDry option, which raises the temperature and delivers better results reducing the need for towel drying.
![](/desc_images/7803/FDPH4316AW_2.jpg)
Skip Pre-rinsing with DishSense Sensor Technology
Get better cleaning results with our sensor technology that adjusts cleaning performance based on the soil level of your dishes.
![](/desc_images/7803/FDPH4316AW_3.jpg)
Remove household bacteria with Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
![](/desc_images/7803/FDPH4316AW_4.jpg)
ENERGY STAR Certified
Maximize your energy and dollar savings with ENERGY STAR Certified appliances.
![](/desc_images/7803/FDPH4316AW_5.jpg)
Quick with 60-minute wash
Quickly clean your dishes in our 60-minute wash cycle.
Keep your kitchen quiet with 52 dBA
Enjoy a quiet performance of 52 dBA with a noise insulation system that reduces noise while the dishwasher is in use.
Sleek bar handle
Sleek bar handle design upgrades the look of your kitchen.
Time saving delay start
Set your dishwasher to run on your schedule with our delay start option.
Open the door at any angle
Reduce door slamming and dishes clinking with our stay-put door that allows you to open the door at any angle to load and unload dishes.
Performance Certifications and Approvals | |
---|---|
NSF Certified | Yes |
cUL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
CEE Tier | Tier 1 |
Installation | |
Number of Leveling Legs | 4 |
Water Inlet Location | Left Bottom Front |
Connection Location | Right Bottom |
ELECTRICAL SPECIFICATIONS | |
Voltage Rating | 120 V |
Connected Load @ 120V | 1.2 kW |
Amps @ 120 Volts | 10 Amps |
Dimensions and Volume | |
Depth With Door Open | 49 1/4 |
Minimum Height | 33 1/2 |
Maximum Height | 35 |
Width | 24 |
Depth | 25 |
Exterior | |
Door Latch | Pull |
Door Type | StayPut |
Door and Handle Design | Handle |
CONTROLS | |
Delay Start Hours | 2-4-6 Hours |
Digital Display | No |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Control Location | Top |
General Specifications | |
Warranty - Parts | 1 Year |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Annual Energy | 240 kWh |
Product Weight | 56 lbs |
Sound Level | 52 dBA |
UPPER RACK | |
Rack Type | Standard |
Rack Coating | PVC |
Rack Spacer | Yes |
Minimum Height Clearance | 8 |
Cup Shelf | Yes |
LOWER RACK | |
Number of Silverware Basket Lids | 3 |
Rack Type | Standard |
Rack Coating | PVC |
Number of Silverware Basket | 1 |
Minimum Height Clearance | 11 |
Maximum Height Clearance | 13 |
Dishwasher Options | |
Washing Temperature - Sanitize | Yes |
Washing Temperature - High | Yes |
Start/Cancel | Yes |
High Temperature | Yes |
Heated Dry | Yes |
Drying System | Static Vent |
Dry - Max | Yes |
Dry - Heat | Yes |
Air Dry | Yes |
Dishwasher Cycles | |
Quick | Yes |
Number of Cycles | 4 |
Normal | Yes |
Heavy | Yes |
Energy Saver | Yes |
DISHWASHER | |
Water Pressure | 120 psi |
Water Usage | 3.2 Gallons |
Wash System | Direct Feed |
Wash Levels | 5 |
Tub Material | Plastic |
Tub Design | Tall Tub |
Tub Color | Midnight Ink |
Upper Spray Arm | Spray Arm |
Middle Spray Arm | Bi-Beam |
Lower Spray Arm | Bi-Beam |
Smart Soil Sensor | Yes |
Rinse Aid Dispenser | Yes |
Place Setting Capacity | 14 |
Motor Speeds | Single-Speed |
Hard Food Disposer or Filtration | Yes |
Filtered Water | 100 % |
Filter Trap | Removable |
Filter Material | Plastic |
Detergent Dispenser | Yes |
Automatic Temperature Control | Yes |
