24" Whirlpool Small Space Induction Cooktop - UCIG245KBL
You may also like
Top 3 Features
Fast Boil
Boil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.
Quick Cleanup

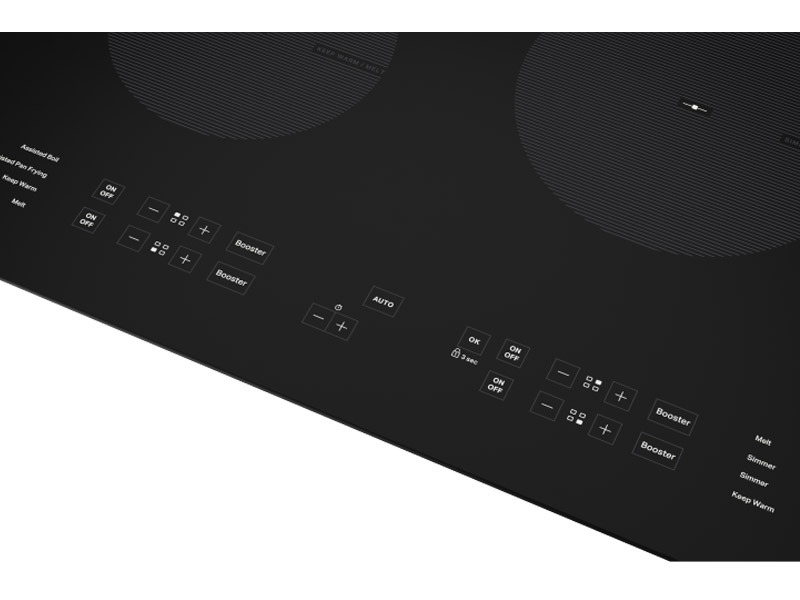

Induction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
Assisted Boil
This optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part n
Additional Features
Assisted Pan Frying
This optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W114
Keep Warm
Low heat keeps food ready to serve when other dishes aren’t quite done, saving you time spent heating up food that’s gotten cold.
Compatible Cutout
Install your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.
Control Lock Mode
Disable the control panel to avoid unintended use and make cleanup easy.
Small Space Solution
Cook in multiple pans on a cooktop that packs in four elements without taking up your valuable counter space.
Melt
Prevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.
Simmer
Maintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
Optional Flush Installation
Choose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
Pan Detection
Easily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.

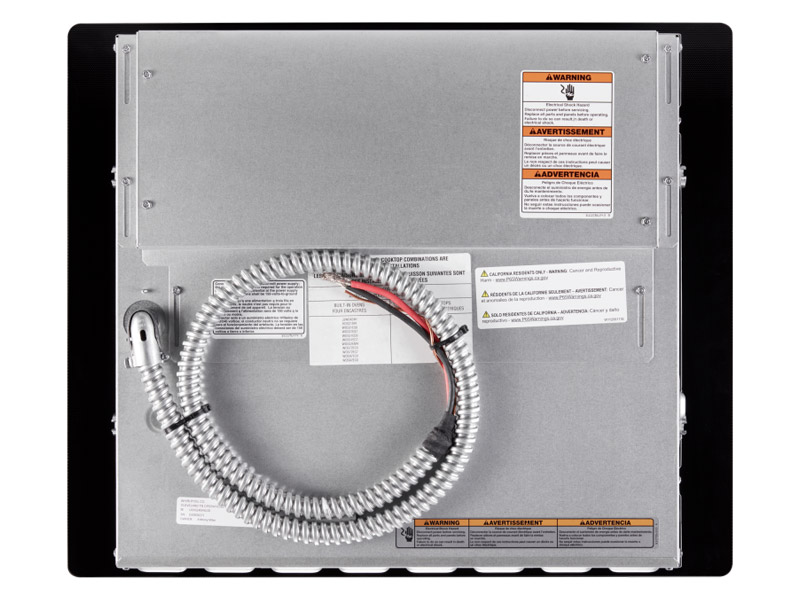

30 Amp Installation
Properly install with a 30 amp hookup.
Kitchen Timer
Keep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the controls.
Wall Oven Compatible
Install this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.
ADA Compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Dimensions | |
---|---|
Depth | 21 1/4 |
Width | 25 5/8 |
Height | 3 11/16 |
Carton Depth | 25 5/16 |
Carton Height | 7 11/16 |
Carton Width | 29 |
Gross Weight | 43 |
Net Weight | 32.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
UL | Yes |
Description | |
Combinations with Oven | WOS31ES7,WOS31ES0,WOS51EC0,WOS51EC7,WOS72EC0,WOS72EC7 |
Cooktop Type | Standard |
Fuel Type | Electric Induction |
Size (in.) | 24 |
Features | |
Hot Surface Indicator Light | Yes |
Automatic Pan Detection | Yes |
Digital Display | Yes |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Automatic Pan Size Adjustment | Yes |
Installs Over Built-In Oven | Yes |
Power Boost | Yes |
Griddle | NA |
LP Convertible | No |
Power Outage Compatible | No |
CONTROLS | |
Control Location | Front |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Element Style | Induction |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 4 |
Left Front Element-Burner Size | 6" |
Left Rear Element-Burner Size | 8" |
Ignition Type | Electronic Button |
Number of Open Bays | NA |
Left Front Element-Burner Power | 1500W/ 1800W Boost |
Right Rear Element-Burner Size | 6" |
Left Front Element-Burner Type | Round |
Left Rear Element-Burner Power | 2300W/ 3000W Boost |
Right Front Element-Burner Size | 7" |
Left Rear Element-Burner Type | Round |
Right Front Element-Burner Power | 1800W/ 2150W Boost |
Right Front Element-Burner Type | Round |
Right Rear Element-Burner Power | 1500W/ 1800W Boost |
Right Rear Element-Burner Type | Round |
Cooktop Configuration | All Burners |
DETAILS | |
Cooktop Surface Material | Glass |
Electrical | |
Amps | 30 |
Volts | 240 |
Watts | 7920 |
208V Compatible | Yes |
Hz | 60 |
Power Cord Included | Yes |
Refinement | |
Style | Cooktops |
