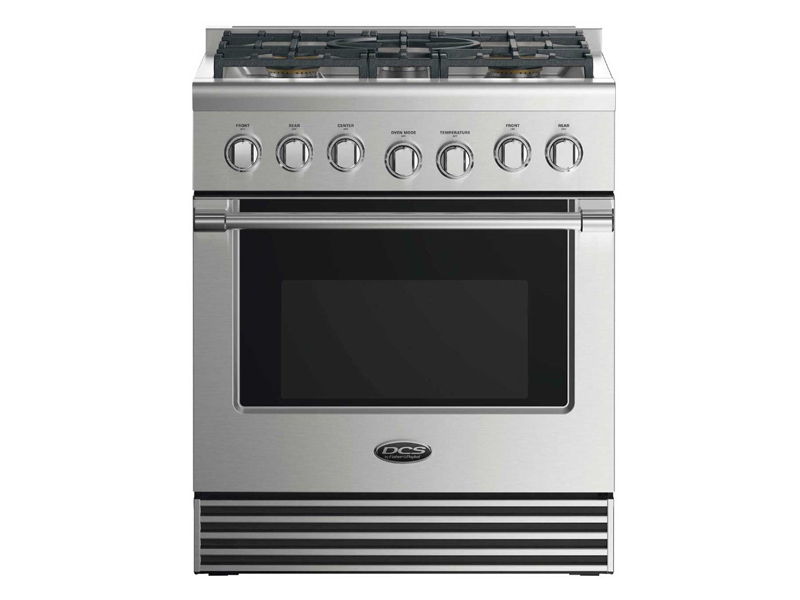

30" DCS 4 cu. Ft. Dual Fuel Range With 5 Burners - RDV2305L

Category : Ranges
SKU : RDV2305L


Literature

30" DUAL FUEL RANGE: 5 BURNERS

Dual Fuel Ranges are built for the cook who loves the power and immediacy of a gas cooktop but demands the precise performance of true convection cooking and the ease of a self-cleaning electric oven. DCS cooktops have unique, patented Dual Flow Burners™ that let you fire up a fierce heat in an instant and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burner powers reach up to 19,000 BTU with total surface output reaching up to 72,000 BTU. The oven’s true convection system uses both the fan and heat element together to actively distribute accurate temperatures throughout the oven.

Perfect Heat

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames. The true convection system uses both the fan and heat element together to heat up quickly and actively distribute even temperatures throughout the oven.

Total Control

From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have True Convection and electronic oven control for precise and consistent oven temperatures delivering superior performance.

Consistent Broiling

The DCS Dual Fuel Range broiler provides an even heat that covers a very large surface area perfect for browning a fully loaded oven tray.

Easy to Clean

A continuous sealed cooktop surface and a pyrolytic self-cleaning oven with removable side racks allow easy cleaning.

Information at a Glance

LED halo control dials for information at a glance. White heating up; orange temperature is reached; red self-cleaning mode.

Cooking Flexibility

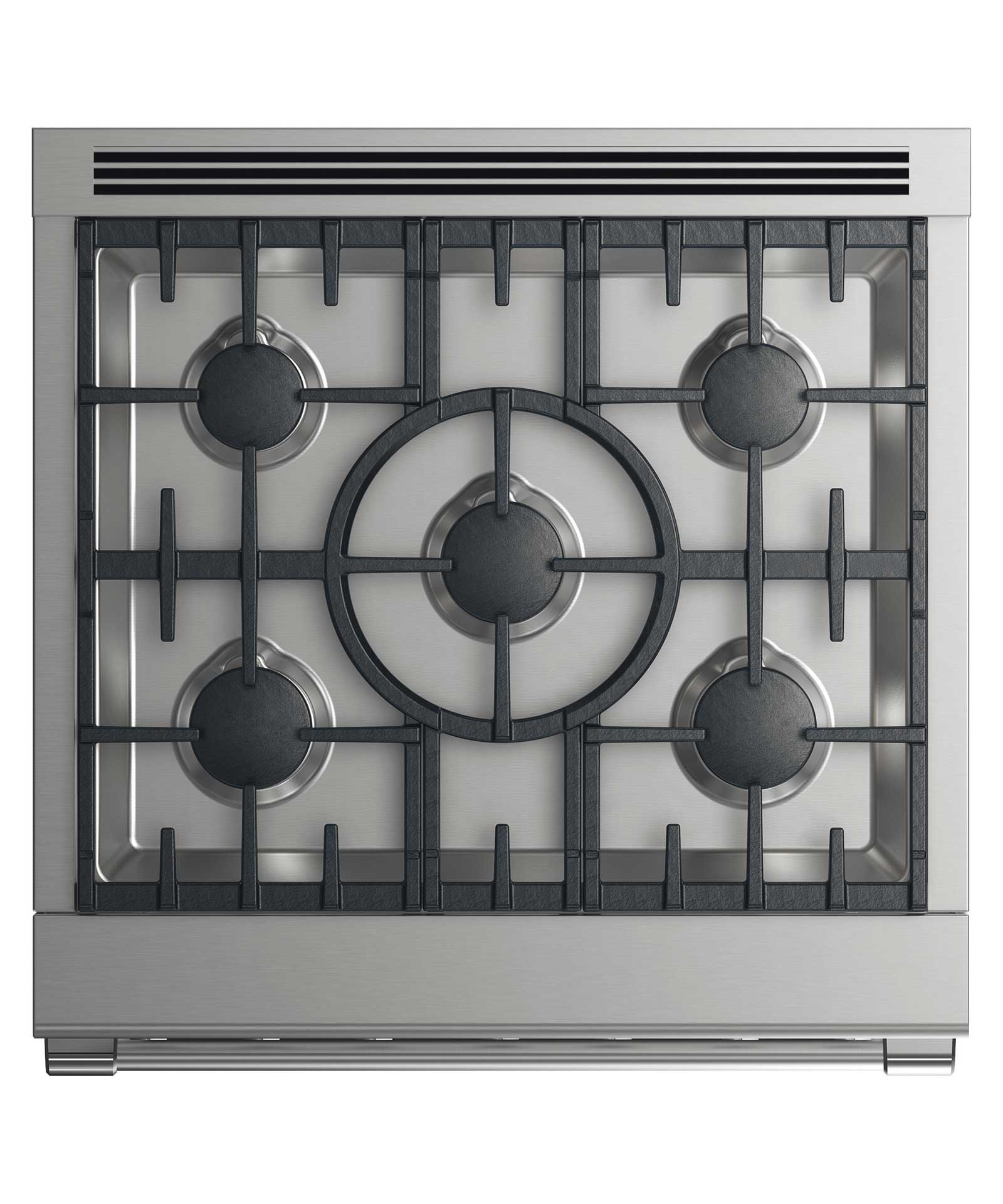

Delivering 12% more usable space than models with exposed bake elements, and a full extension telescopic racking system, this oven is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop.

Kitchen Family Match

Handle options to suit any kitchen and designed to match the DCS professional kitchen family.

Dimensions
Depth 29 1/8"
Height 35 3/4 - 36 3/4"
Width 29 7/8"
Accessories sold separately
Recommended hood VS30 / ES30 -30" Pro / Traditional Hood
Square handle option AH-R3
Burner ratings
Max burner power 19000BTU
Power back left 11500BTU
Power back right 11500BTU
Power center 19000BTU
Power front left 15000BTU
Power front right 15000BTU
Simmer on all burners 140°F
Total cooktop power 72000BTU
Burners
Dual Flow Burners™ 5
Capacity
Main oven- Total Capacity (AHAM) 4cu ft
Shelf positions 5
Cooking Modes
Main oven functions 6
Gas Requirements
Pressure 11" to 14" W.C
Measurements
Depth (excluding handle and dials) 29 1/8"
Height (excluding vent trim) 35 3/4 - 36 3/4"
Performance
Main oven bake 3500W
Main oven broil 4000W
True Convection Oven 2500W
SAFETY
Main oven- Full extention telescopic racks 3
Warranty
Warranty Limited 2 Years Parts & Labor
