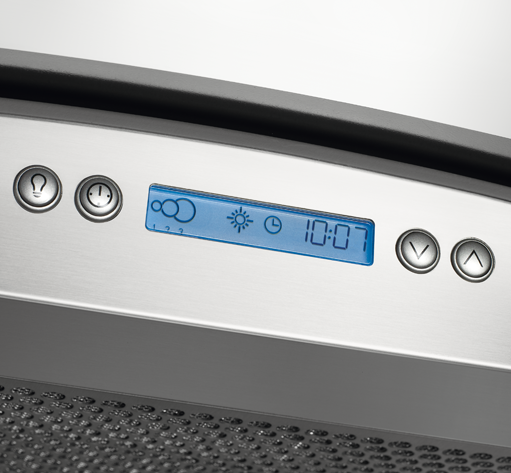

LCD Electronic Controls
An array of versatile options with easy-to-read blue displays, including a convenient kitchen timer, fan-speed selection and a delayed power-off option. The hoods also feature sensors that will turn them on automatically if they sense heat or smoke.
Dual-Centrifugal Fan - Up to 600 cubic feet
Move air quietly and quickly — up to 600 cu. ft. of air per minute.
Halogen Lighting
For bright illumination of the cooktop surface.

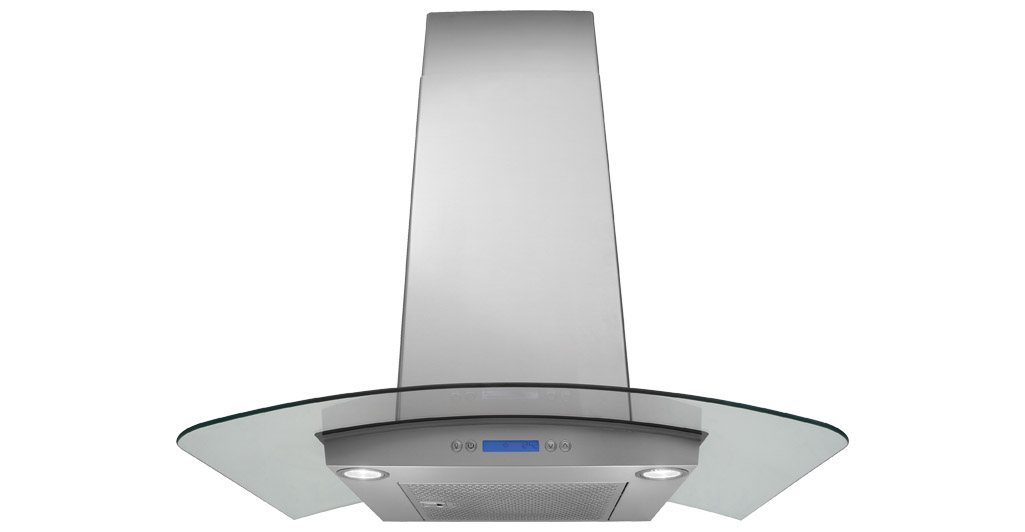

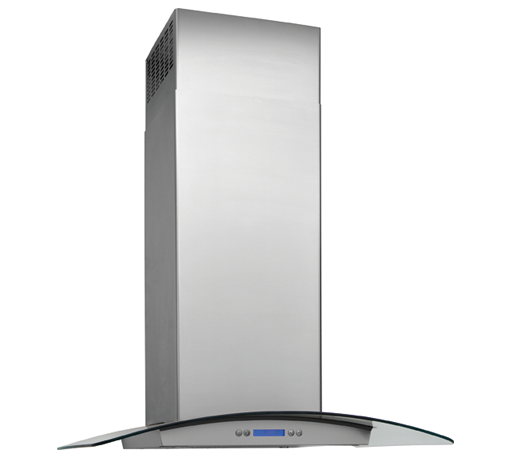

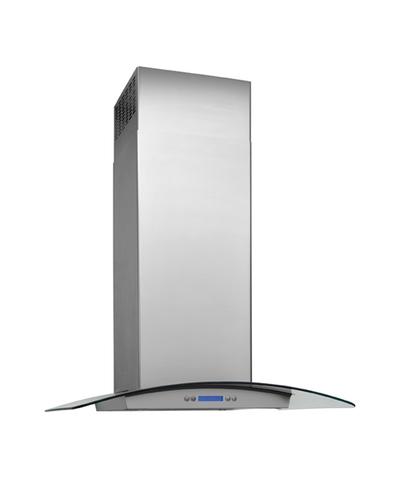

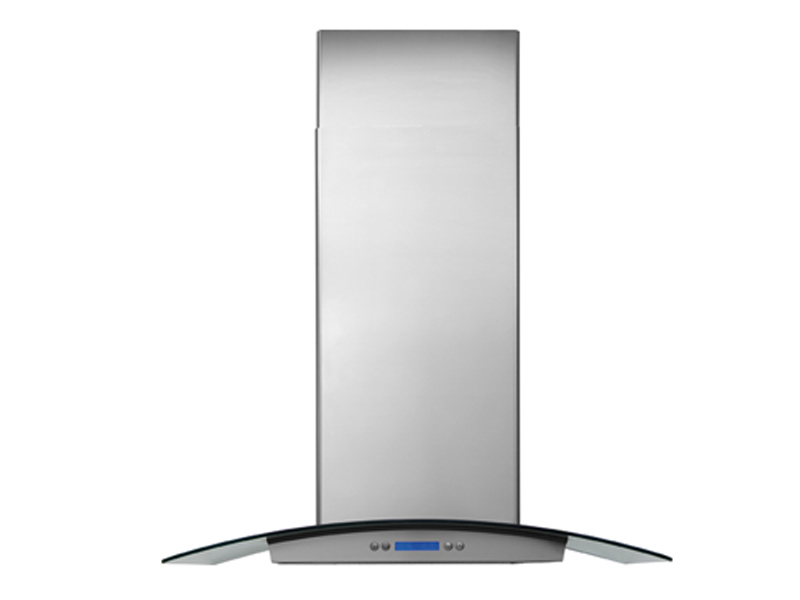

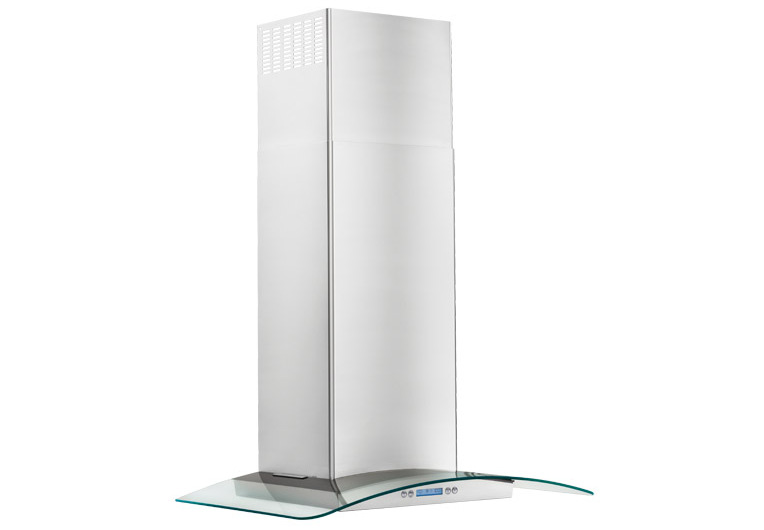

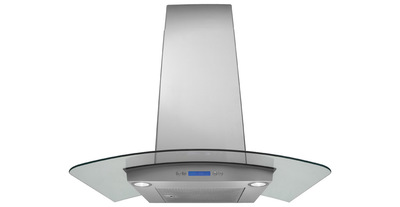

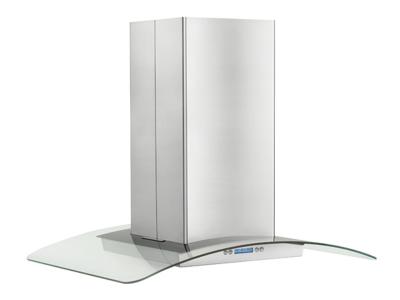

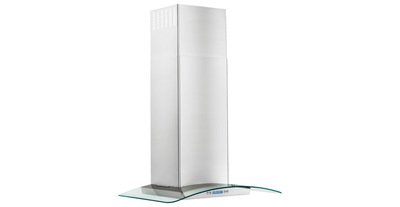

Glass Canopy Wall-Mount Hoods
Glass and stainless steel construction; four-speed, 600-CFM fans; two halogen lights
Auto-Start Heat Sensor
If the hood senses sufficient heat it will automatically turn on to a medium fan speed to ensure proper ventilation.
Stainless Steel Filters
Dishwasher-safe for easy cleaning.
Platinum Star® Limited Warranty
Guaranteed performance provides peace of mind and service from our national network of authorized independent service professionals.
Platinum Star® Limited Warranty
Guaranteed performance provides peace of mind and service from our national network of authorized independent service professionals.
Convenient Timer
Can be set to automatically shut off the vent after a specified time (10-minute maximum).
Optional Ductless Ventilation
Two Halogen Lights
| CONTROLS | |
|---|---|
| Controls | Electromechanical Push Button |
| Display Type | Blue LED |
| Timer Function | Yes |
| Timer Shut-off | 10 |
| Exterior Dimensions | |
| Depth | 19-11/16" |
| Height | 54-9/16" |
| Height (with Flue Extension) | 30-1/8" |
| Width | 29-7/8" |
| ELECTRICAL SPECIFICATIONS | |
| Connected Load (kW Rating) @ 120V | 0.474 |
| Voltage Rating | 120V 60Hz |
| General Specifications | |
| Shipping Weight | 64 |
| ProductLaunch | NA |
| Product Weight (lbs) | 60 |
| Vent & Light System | |
| Air Discharge | Vertical |
| Auto-start Heat Sensor | Yes |
| Blower Type | Dual-Centrifugal |
| Duct Diametre | 8" Round |
| Exhaust Fan Capacity (CFM) | 600 |
| Exhaust Fan Speeds | 4 |
| Filter Type | Washable Stainless Steel |
| Filters | 2 |
| Sones Rating | 9.0 |
| Vent Style | Stainless Steel / Glass Canopy |
| Accessories | |
| Charcoal Filter | Optional order item no. RHCFW60GS |
| Duct-Free Kit | Optional order item no. RHDFW60GS |
