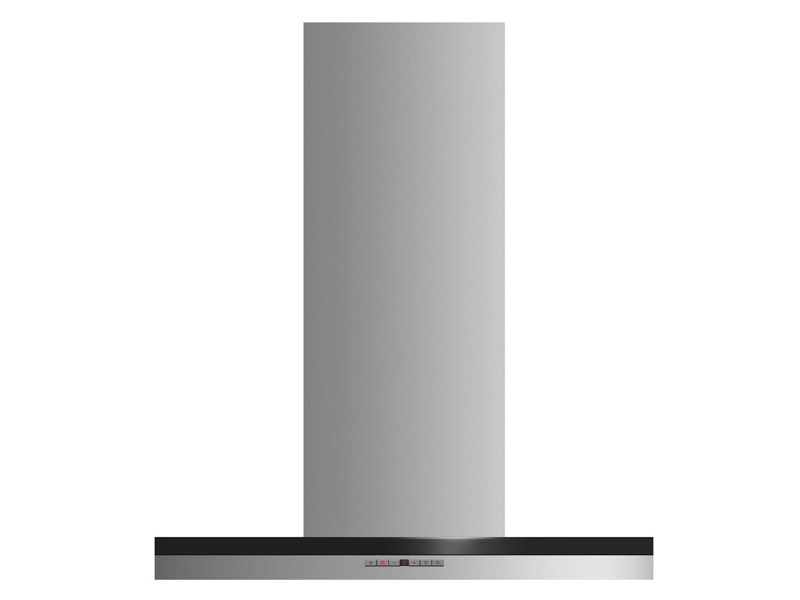

30" Fisher & Paykel Wall Chimney Vent Hood Box - HC30DTXB2

Category : Ventilation
SKU : HC30DTXB2


Literature

Wall Chimney Vent Hood, 30", Box
This Fisher & Paykel 30" wall chimney box vent hood quietly and efficiently removes steam and cooking odors.

Removable, easy to clean filters that effectively trap grease
An easy to use control panel
Four fan speeds for quick and effective extraction

Quiet and effective

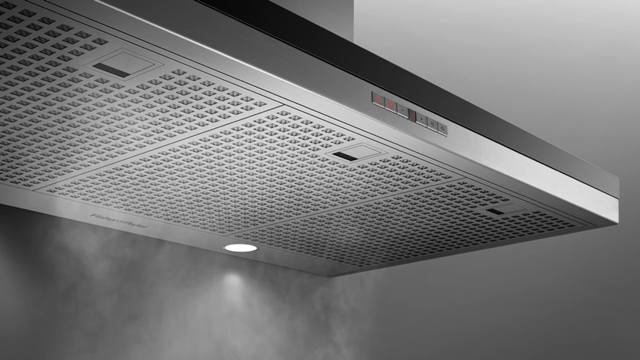

This range hood features four fan speeds providing powerful extraction to quickly remove odours and steam. As odors can linger in the kitchen well after cooking is finished, the timer keeps the vent hood working for up to 15 minutes before automatically turning off.


Simple to use

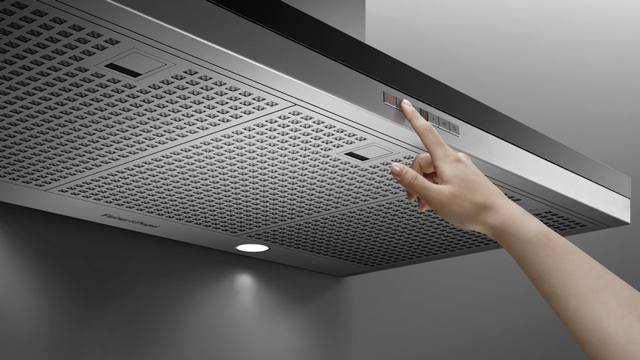

This Fisher & Paykel chimney range hood features a sleek and easy to use soft-touch control panel. This range hood’s LED lights provide bright, warm, energy efficient lighting ensuring the entire cooktop surface is illuminated

Easy cleaning
The black glass and stainless steel finish is easily wiped clean. Multi-layered, dishwasher safe filters trap grease effectively and can easily be removed for cleaning.

Designed to match
This wall chimney vent hood's sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel's kitchen appliance family.

Dimensions
Depth19 11/16"
Height23 3/4 - 41 1/16"
Width 29 3/4"
Fan ratings
Maximum air movement600CFM
Maximum decibel rating67dBA
Speed 1 airflow 316CFM
Speed 1 sound rating 48dBA
Speed 2 airflow 432CFM
Speed 2 sound rating 58dBA
Speed 3 airflow 542CFM
Speed 3 sound rating 63dBA
Speed 4 airflow 600CFM
Speed 4 sound rating 67dBA
Performance
Extraction type Surface
Filter typeMesh
Number of filters 2
Speeds4
Installation
Air outlet 6"
DuctedTop extraction
Recirculation Optional - top extraction
Cleaning
Dishwasher safe filters2
Optional accessories
Chimney extension 791774
Light bulb 792579
Recirculation carbon filter(s) 791772
Recirculation diverter 792580
Power requirement
Rated current 5.2A
Supply frequency60Hz
Supply voltage 120V
Total Power 543
CONTROLS
Control type Soft-touch
Light typeLED 2 x 6W
DETAILS
UPC Code 822843500833
Warranty
Warranty2 years parts & labor
