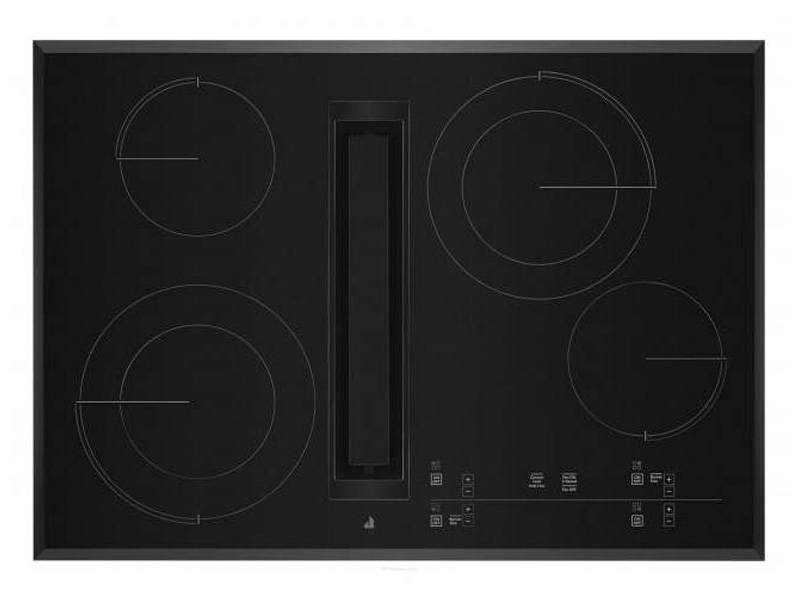

30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Black - JED4430KB

30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Stainless Steel - JED4430KS

30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Black - JED4430KB

Category : Cooktops
SKU : JED4430KB
SKU: JED4430KS
SKU: JED4430KB


Literature

Top 3 Features

Emotive Controls

Striking and inviting controls with LED lighting unleash performance at your touch.

Semi-Flush Installation

Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

JX3™ Downdraft Ventilation System with 3 Speeds

Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

Additional Features

Oblivion Glass Surface

Sleek black glass with a beveled edge that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

Perimetric Extraction

Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

9"/6" Dual-Choice™ Element

An electric element that features two element sizes at one position for greater cooking flexibility.

Two 6 Inch Elements

Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.

10”/6” Dual-Choice™ Element (3,000 Watt)

This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

Radiant Elements

Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.

297 CFM Motor Class Blower

A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.

Hot Surface Indicators

Light(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off.

Badasses at the Ready

Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.

Serviced by a Select Few

We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

Optional Duct-Free Ventilation Kit

Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)

Duct-Free Filter

Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.

Electrical
Volts220
Power Cord IncludedNo
Amps40
VENTILATION SYSTEM
CFM Motor Class310
Number of Speeds3
DETAILS
Cooktop Surface MaterialCeramic Glass
Cooktop Details
Right Rear Element-Burner TypeDual
Right Rear Element-Burner Power3000W/1400W
Left Front Element-Burner TypeDual
Right Rear Element-Burner Size9"/6"
Right Front Element-Burner Power1200W
Left Rear Element-Burner TypeHyper
Left Rear Element-Burner Size6"
Left Front Element-Burner Size10"/6"
Left Rear Element-Burner Power1300W
Right Front Element-Burner TypeSingle
Right Front Element-Burner Size6"
Number of Cooking Element-Burners4
Cooktop Surface ColorBlack
Cooktop Element StyleRadiant
CONTROLS
Control LocationRight Front
Control TypeElectronic Touch
Infinite Heat ControlsNo
Design Type
Design ExpressionBlack Glass
Energy
Annual Energy Usage [kWh]258
Refinement
StyleCooktops
Features
SelectionConvertible to Duct Free Ventilation,JX3 Downdraft Ventilation System with 3-Speed Fan
Power Outage CompatibleNo
Power BoostNo
GriddleNA
LP ConvertibleNo
Installs Over Built-In OvenNo
Downdraft VentYes
Heating Element On Indicator LightYes
Automatic Pan DetectionNo
Digital DisplayYes
Hot Surface Indicator LightYes
Description
Size (in.)30
Fuel TypeElectric Radiant
Cooktop TypeDowndraft
Certifications
ULYes
Energy Rating (kWh/year)258
ADA CompliantYes
Prop 65Standard
Dimensions
Net Weight65.3
Gross Weight78
Carton Width35 1/8
Carton Height23 13/16
Carton Depth26 7/16
Minimum Height18 23/32
Height3 21/32
Width30 7/8
Depth22 1/16
