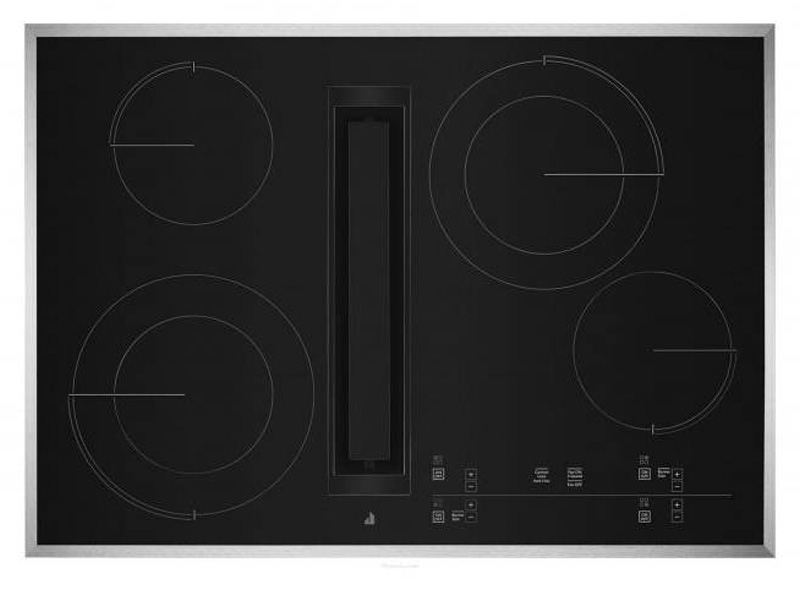

30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Stainless Steel - JED4430KS
30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Stainless Steel - JED4430KS
30" Jenn-Air Electric Radiant Downdraft Touch Cooktop in Black - JED4430KB
You may also like
Top 3 Features
Emotive Controls
Striking and inviting controls with LED lighting unleash performance at your touch.
JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
Lustre Brushed Metal Design
Blur the lines of temptation with hairpin corners of lustrous brushed metal that will leave you reeling. The tight seams and joints seamlessly frame an obsidian black glass surface.
Additional Features
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
9"/6" Dual-Choice™ Element
An electric element that features two element sizes at one position for greater cooking flexibility.
Two 6 Inch Elements
Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.
10”/6” Dual-Choice™ Element (3,000 Watt)
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
Radiant Elements
Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.
297 CFM Motor Class Blower
A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.
Hot Surface Indicators
Light(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off.
Badasses at the Ready
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Optional Duct-Free Ventilation Kit
Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)
Duct-Free Filter
Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
Cooktop Details | |
---|---|
Right Front Element-Burner Power | 1200W |
Left Rear Element-Burner Type | Hyper |
Left Rear Element-Burner Size | 6" |
Left Front Element-Burner Size | 10"/6" |
Left Rear Element-Burner Power | 1300W |
Right Front Element-Burner Type | Single |
Right Front Element-Burner Size | 6" |
Number of Cooking Element-Burners | 4 |
Cooktop Surface Color | Black |
Cooktop Element Style | Radiant |
Right Rear Element-Burner Size | 9"/6" |
Right Rear Element-Burner Power | 3000W/1400W |
Left Front Element-Burner Power | 3000W/1400W |
Left Front Element-Burner Type | Dual |
Right Rear Element-Burner Type | Dual |
CONTROLS | |
Control Type | Electronic Touch |
Control Location | Right Front |
Infinite Heat Controls | No |
Features | |
Selection | Convertible to Duct Free Ventilation,JX3 Downdraft Ventilation System with 3-Speed Fan |
Power Outage Compatible | No |
Power Boost | No |
Griddle | NA |
LP Convertible | No |
Installs Over Built-In Oven | No |
Heating Element On Indicator Light | Yes |
Downdraft Vent | Yes |
Automatic Pan Detection | No |
Digital Display | Yes |
Hot Surface Indicator Light | Yes |
Description | |
Size (in.) | 30 |
Fuel Type | Electric Radiant |
Cooktop Type | Downdraft |
Certifications | |
UL | Yes |
Energy Rating (kWh/year) | 258 |
ADA Compliant | Yes |
Prop 65 | Standard |
Dimensions | |
Net Weight | 65.3 |
Gross Weight | 78 |
Carton Width | 35 1/8 |
Carton Height | 23 13/16 |
Carton Depth | 26 7/16 |
Minimum Height | 18 23/32 |
Height | 3 21/32 |
Width | 30 7/8 |
Depth | 22 1/16 |
DETAILS | |
Cooktop Surface Material | Ceramic Glass |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 220 |
VENTILATION SYSTEM | |
CFM Motor Class | 310 |
Number of Speeds | 3 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Design Type | |
Design Expression | Stainless Steel |
