Key Features
- Air Fry Mode
- Dishwasher-Safe Air Fry Basket
- Even-Heat™ True Convection
- Integrated Meat Thermometer
- Even-Heat™ Preheat
Product Overview

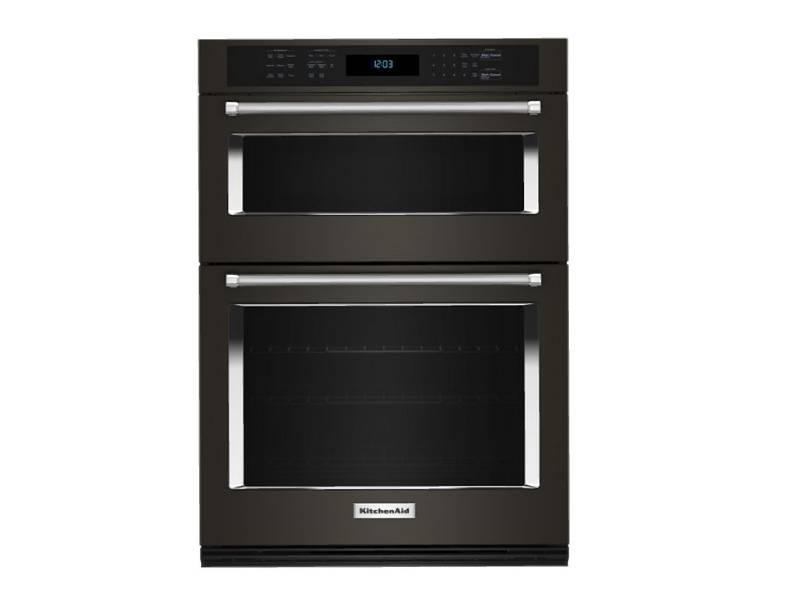

KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode
Get the crisp you crave, right from your oven. This 30" Combination Microwave Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.*When compared to deep frying.
Air Fry Mode
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Even-Heat™ True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
SatinGlide™ Roll-Out Extension Rack
Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Additional Features
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Self-Close Doors
Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
FIT System Limited Guarantee
Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
EasyConvect™ Conversion System
Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
4,000-Watt Broil Element
Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Dimensions | |
---|---|
Net Weight | 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg |
Cutout Width | 72.39 cm, 28-1/2 in |
Cutout Height | 104.94 cm, 41-313/1000 in |
Cutout Depth | 60.96 cm, 24 in |
Depth | 68.90 cm, 27-1/8 in |
Depth Closed Excluding Handles | 62.23 cm, 24-1/2 in |
Depth Closed Including Handles | 68.90 cm, 27-1/8 in |
Depth With Door Open 90 Degree | 118.74 cm, 46-3/4 in |
Height | 107.95 cm, 42-1/2 in |
Gross Weight | 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg |
Oven Capacity | 141.50 l, 141.50 l, 141.50 l, 5 cu. ft., 5 cu. ft., 5 cu. ft. |
Oven Interior Depth | 48.26 cm, 19 in |
Oven Interior Height | 45.72 cm, 18 in |
Oven Interior Width | 63.50 cm, 25 in |
Width | 75.56 cm, 29-3/4 in |
Certifications | |
Star K Certified | Star K Certified, Star K Certified, Star K Certified |
CUL | Yes, Yes, Yes |
ADA Compliant | No, No, No |
UL | Yes, Yes, Yes |
Exterior Details | |
Door Lock | Yes, Yes, Yes |
Door Type | Metal & Glass, Metal & Glass, Metal & Glass |
Handle Color | Stainless Steel, Stainless Steel, Stainless Steel |
Handle Material | Metal, Metal, Metal |
Oven Cavity Details | |
Convection | Yes, Yes, Yes |
Broiler Location | Top of Oven, Top of Oven, Top of Oven |
Broiler Element Power | 4000W, 4000W, 4000W |
Bake Element Power | 2800W, 2800W, 2800W |
Convection Element Power | 3200 W, 3200 W, 3200 W, 3200 W |
Oven Convection Cooking System | True Convection, True Convection, True Convection |
Convection Functions | Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion |
Cooking Power | 900 W, 900 W, 900 W, 900 W |
Door Broil Position | Closed, Closed, Closed |
Door Lock | Yes |
Hidden Bake Element | Yes, Yes, Yes |
Interior Coating | Porcelain, Porcelain, Porcelain |
Interior Color | Blue, Blue, Blue |
Number of Oven Lights | 2, 2, 2 |
Oven Racks | 3, 3, 3 |
Number of Rack Guides | 6, 6, 6 |
Cleaning Type | Self-Cleaning, Self-Cleaning, Self-Cleaning |
Oven Light Type | Halogen |
Self-Cleaning Oven Racks | No, No, No |
CONTROLS | |
Control Type | Electronic Touch, Electronic Touch, Electronic Touch |
Display Color | White, White, White |
Display | Digital |
Language Conversion | English/French/Spanish, English/French/Spanish, English/French/Spanish |
Microwave Selections | Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer |
DETAILS | |
Convection Power | 1,200 W, 1,200 W, 1,200 W, 1,200 W |
Flush Installation Approved | Yes, Yes, Yes |
Fuel Type | Electric, Electric, Electric |
Grill | Yes, Yes, Yes |
Turntable | Yes, Yes, Yes |
Smart Compatibility | |
Connectivity | No, No, No |
Works With | No, No, No |
Microwave Details | |
Door Release | Handle, Handle, Handle |
Grill | Yes |
Grill Power | 1,600 W, 1,600 W, 1,600 W, 1,600 W |
Microwave Capacity | 39.62 l, 39.62 l, 39.62 l, 1.4 cu. ft., 1.4 cu. ft., 1.4 cu. ft. |
Microwave Interior Depth | 41.91 cm, 16-1/2 in |
Microwave Interior Height | 20.96 cm, 8-1/4 in |
Microwave Interior Light | Halogen |
Microwave Interior Width | 44.77 cm, 17-5/8 in |
Sensor Cooking | Yes - Microwave, Yes - Microwave, Yes - Microwave |
Turntable Diameter Size | 35.88 cm, 14-1/8 in |
Electrical | |
Power Cord Included | No |
