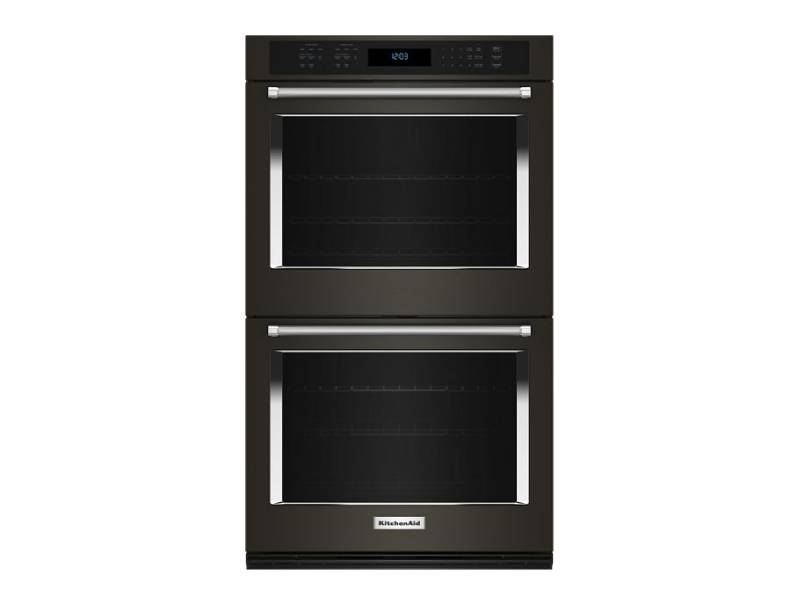

30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PBS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PBS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PPS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PSS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PWH
You may also like
Key Features
- Air Fry Mode
- Dishwasher-Safe Air Fry Basket
- Even-Heat™ True Convection
- FIT System Limited Guarantee
- Integrated Meat Thermometer
Product Overview
KitchenAid® 30" Double Wall Oven with Air Fry Mode
Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.*When compared to deep frying.
Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
Additional Features
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
FIT System Limited Guarantee
Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
Even-Heat™ Preheat
Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
SatinGlide™ Roll-Out Extension Rack
Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
| Certifications | |
|---|---|
| CUL | Yes, Yes, Yes |
| Star K Certified | Star K Certified, Star K Certified, Star K Certified |
| UL | Yes, Yes, Yes |
| ADA Compliant | No, No, No |
| Dimensions | |
| Cutout Depth | 60.96 cm, 24 in |
| Cutout Height | 127.64 cm, 50-1/4 in |
| Cutout Width | 72.39 cm, 28-1/2 in |
| Depth | 68.90 cm, 27-1/8 in |
| Depth Closed Excluding Handles | 62.23 cm, 24-1/2 in |
| Depth Closed Including Handles | 68.90 cm, 27-1/8 in |
| Depth With Door Open 90 Degree | 118.74 cm, 46-3/4 in |
| Gross Weight | 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg |
| Height | 129.06 cm, 50-13/16 in |
| Lower Oven Interior Depth | 48.26 cm, 19 in |
| Lower Oven Interior Height | 45.72 cm, 18 in |
| Lower Oven Interior Width | 63.50 cm, 25 in |
| Net Weight | 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg |
| Upper Oven Interior Depth | 48.26 cm, 19 in |
| Upper Oven Interior Height | 45.72 cm, 18 in |
| Upper Oven Interior Width | 63.50 cm, 25 in |
| Width | 75.56 cm, 29-3/4 in |
| Oven Cavity Details | |
| Bake Element Power | 2800W Both, 2800W Both, 2800W Both |
| Broiler Element Power | 4000W Both, 4000W Both, 4000W Both |
| Broiler Location | Top of Oven, Top of Oven, Top of Oven |
| Convection Element Power | 3200 Both W, 3200 Both W, 3200 Both W, 3200 Both W |
| Convection Element Type | True Convection, True Convection, True Convection |
| Convection Functions | Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion |
| Door Broil Position | Closed, Closed, Closed |
| Door Lock | Yes |
| Door Removable | Yes, Yes, Yes |
| Hidden Bake Element | Yes, Yes, Yes |
| Installable Under Cooktop | No, No, No |
| Interior Coating | Porcelain, Porcelain, Porcelain |
| Light Type | Halogen, Halogen, Halogen |
| Lower Oven Number of Oven Lights | 2, 2, 2 |
| Number of Bake Elements | 2, 2, 2 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 3, 3, 3 |
| Number of Lower Rack Guides | 6, 6, 6 |
| Number of Upper Oven Racks | 3, 3, 3 |
| Number of Upper Rack Guides | 6, 6, 6 |
| Cleaning Type | Self-Cleaning, Self-Cleaning, Self-Cleaning |
| Oven Convection Cooking System | Convection Both, Convection Both, Convection Both |
| Self-Cleaning Oven Racks | No, No, No |
| Upper Oven Number of Oven Lights | 2, 2, 2 |
| Exterior Details | |
| Door Lock | Yes, Yes, Yes |
| Door Type | Metal & Glass, Metal & Glass, Metal & Glass |
| Oven Window Size | Extra Large, Extra Large, Extra Large |
| CONTROLS | |
| Control Type | Electronic Touch, Electronic Touch, Electronic Touch |
| Display Color | White, White, White |
| Language Conversion | English/French/Spanish, English/French/Spanish, English/French/Spanish |
| Display | Digital |
| DETAILS | |
| Flush Installation Approved | Yes, Yes, Yes |
| Fuel Type | Electric, Electric, Electric |
| Oven Type | Double, Double, Double |
| Power On Indicator Light | Yes |
| Smart Compatibility | |
| Connectivity | No, No, No |
| Works With | No, No, No |
| Electrical | |
| Power Cord Included | No |
