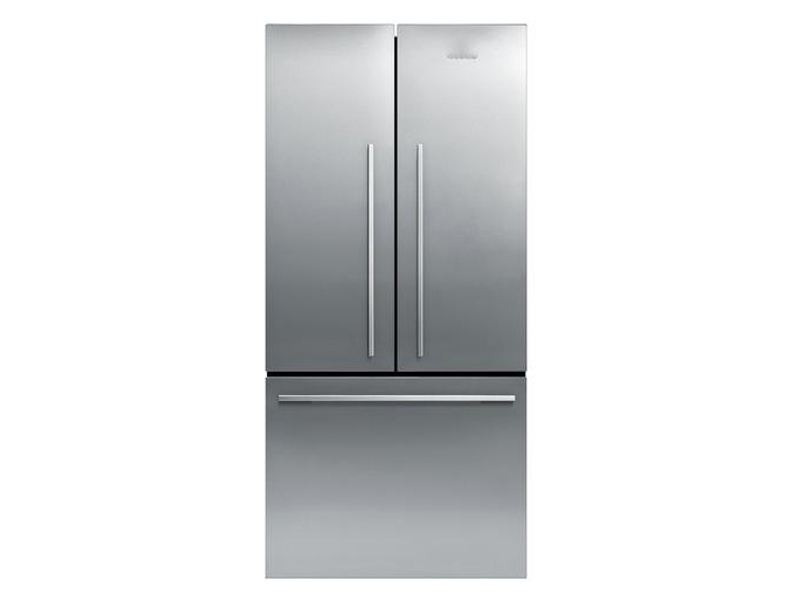

31" Fisher & Paykel 17 Cu. Ft. ActiveSmart Counter Depth French Door Refrigerator - RF170ADX4
31" Fisher & Paykel 17 Cu. Ft. ActiveSmart Counter Depth French Door Refrigerator - RF170ADX4
30" Fisher & Paykel 17 Cu. Ft. ActiveSmart Counter Depth French Door Refrigerator - RF170ADW5
Literature
You may also like
This fridge has been designed to maximise space as well as access. French Door refrigerators allow unobstructed access to wide-open shelf spaces. Below, a spacious full-extension drawer and storage bins provide ergonomic solutions for freezer items.
Configuration
- Adjustable glass shelves
- Adjustable roller feet
- Clear freezer bins :: 3
- Covered door shelves :: 2
- Four shelves (incl above vegetable area)
- Front levelling feet
- Full extension runners
- Full width adjustable door shelves :: 2
- Gallon bottle storage shelves
- Half width adjustable door shelves :: 2
- Ice bin and scoop
- Rear rollers
- Single bottle holders :: 4
- Full extension freezer drawer
Consumption Data
- Energy usage (kWh/yr) :: 501
Design
- Concealed hinges
- EZKleen stainless steel
- Flat door design
- Silver prepaint cabinet
- Straight designer handle
- French Door refrigerator
Dimensions
- Total net volume :: 16.9 cu.ft
- Height - incl. feet and hinge cap :: 67 1/2in
- Width :: 31 1/8in
- Depth - door closed not including handle :: 27 3/8in
- Minimum air clearance - each side :: 1in
- Minimum air clearance - at rear (incl. compressor tray) :: 1in
- Minimum air clearance - on top :: 1 1/2in
- Refrigerator volume :: 12.1 cu.ft
- Freezer volume :: 4.8 cu.ft
Performance Features
- Adaptive defrost
- Bottle chill
- Door alarm - freezer
- Door alarm - refrigerator
- Fast freeze
- Frost free
- Humidity controlled crisper bins
- LED lighting
- Sabbath Mode
- Smart Touch control panel
- ActiveSmart™ system
- Humidity Control System
Warranty
- 2 year parts & labour warranty, plus additional 3 year sealed system parts warranty
| Dimensions | |
|---|---|
| Depth | 27 3/8" |
| Height | A67 17/32" |
| Width | B31 3/32" |
| Measurements | |
| Minimum air clearance - at rear | 1-3/16" |
| Minimum air clearance - each side | 13/16" |
| Consumption | |
| Energy usage | 501kWh/year |
| Capacity | |
| Freezer | 4.8cu ft |
| Refrigerator | 12.1cu ft |
| Total | 16.9cu ft |
| Accessories | |
| Stainless steel surround kit | Part number 24478 |
| Warranty | |
| Parts & Labor | 2 years |
| Sealed system parts | 5 years |
| DETAILS | |
| UPC Code | 822843242658 |
| Refrigerator | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
