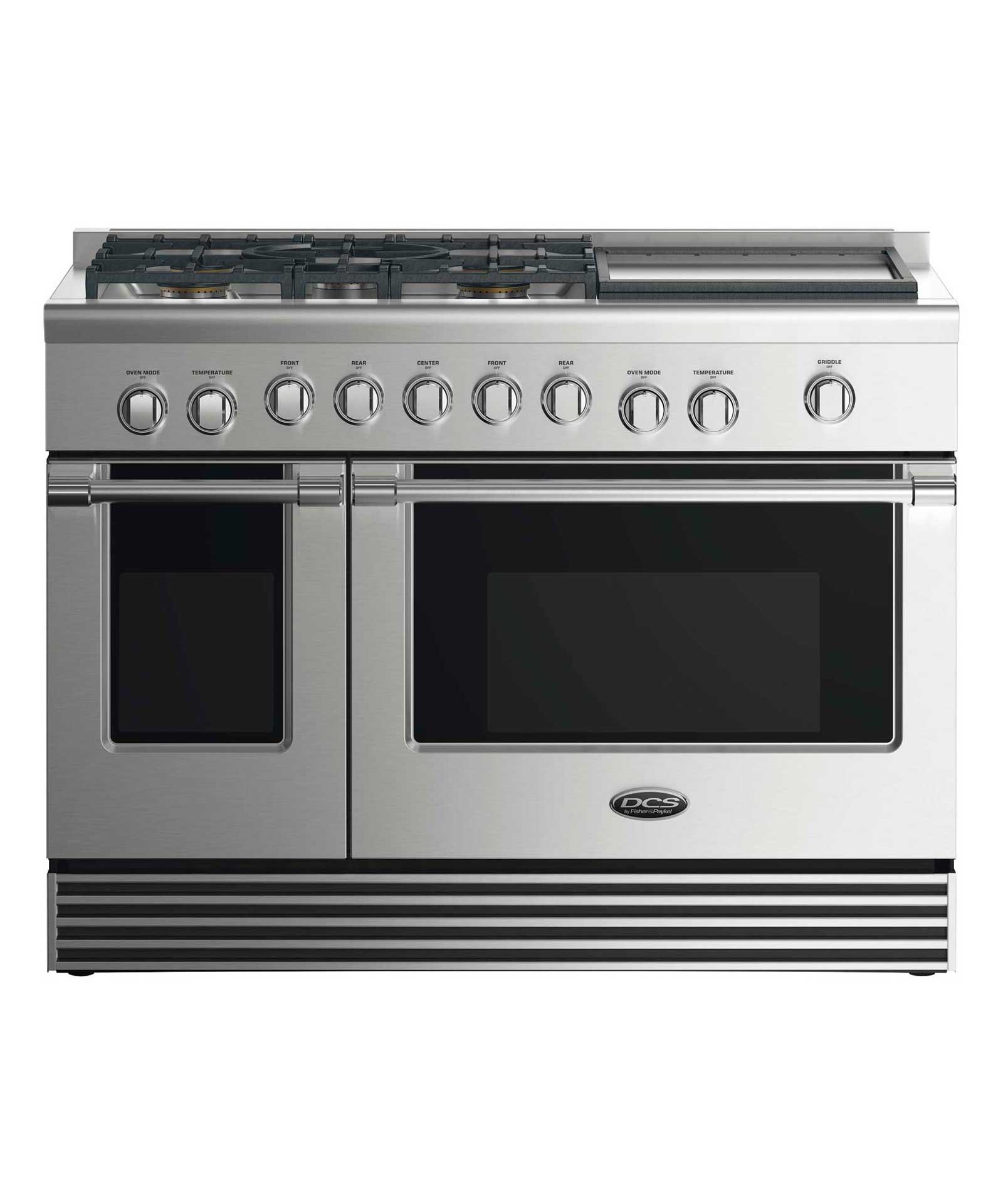

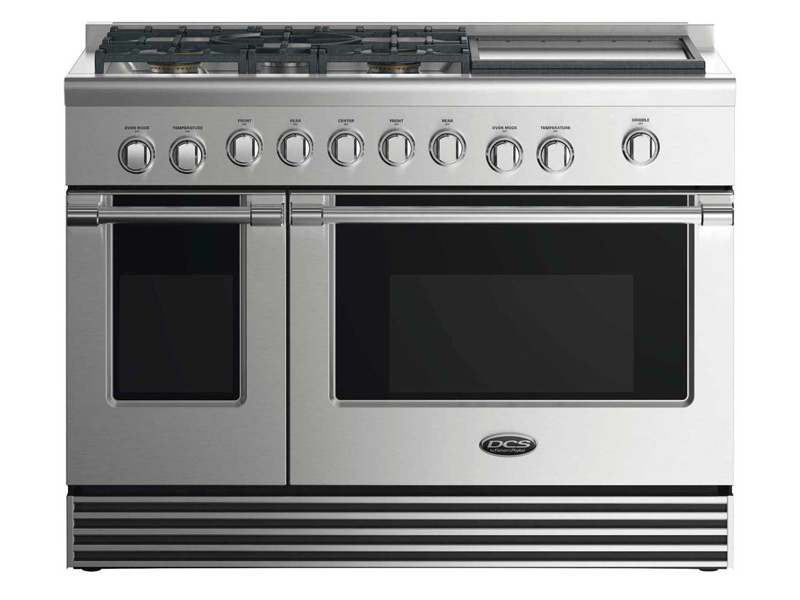

48" DCS Dual Fuel Range With 5 Burners And Griddle - RDV2485GDL

Category : Ranges
SKU : RDV2485GDL


Literature

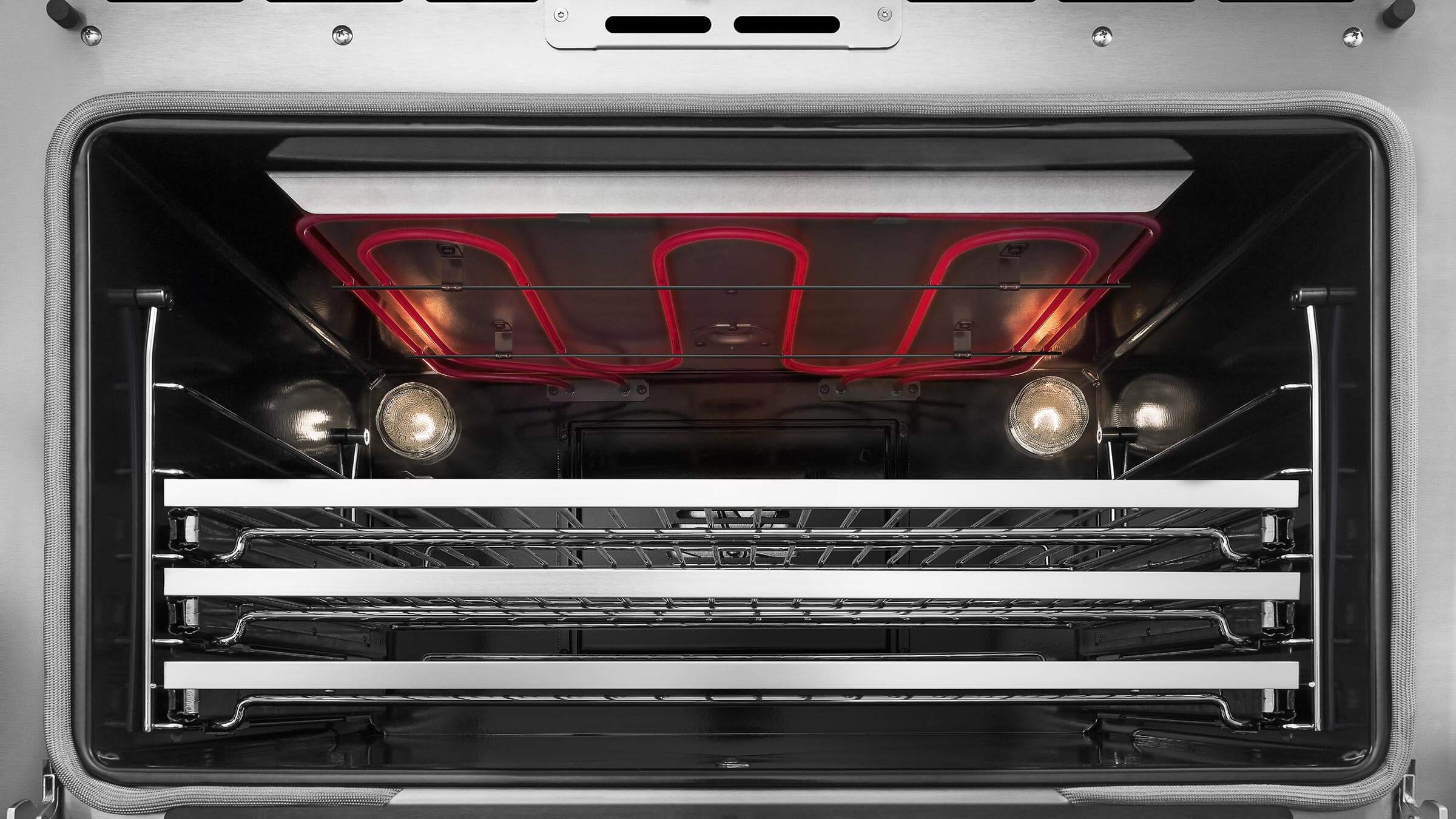

Dual Fuel Ranges are built for the cook who loves the power and immediacy of a gas cooktop but demands the precise performance of true convection cooking and the ease of a self-cleaning electric oven. DCS cooktops have unique, patented Dual Flow Burners that let you fire up a fierce heat in an instant -- and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burner powers reach up to 19,000 BTU with total surface output reaching up to 96,000 BTU. The oven's true convection system uses both the fan and heat element together to actively distribute accurate temperatures throughout the oven.

Perfect Heat

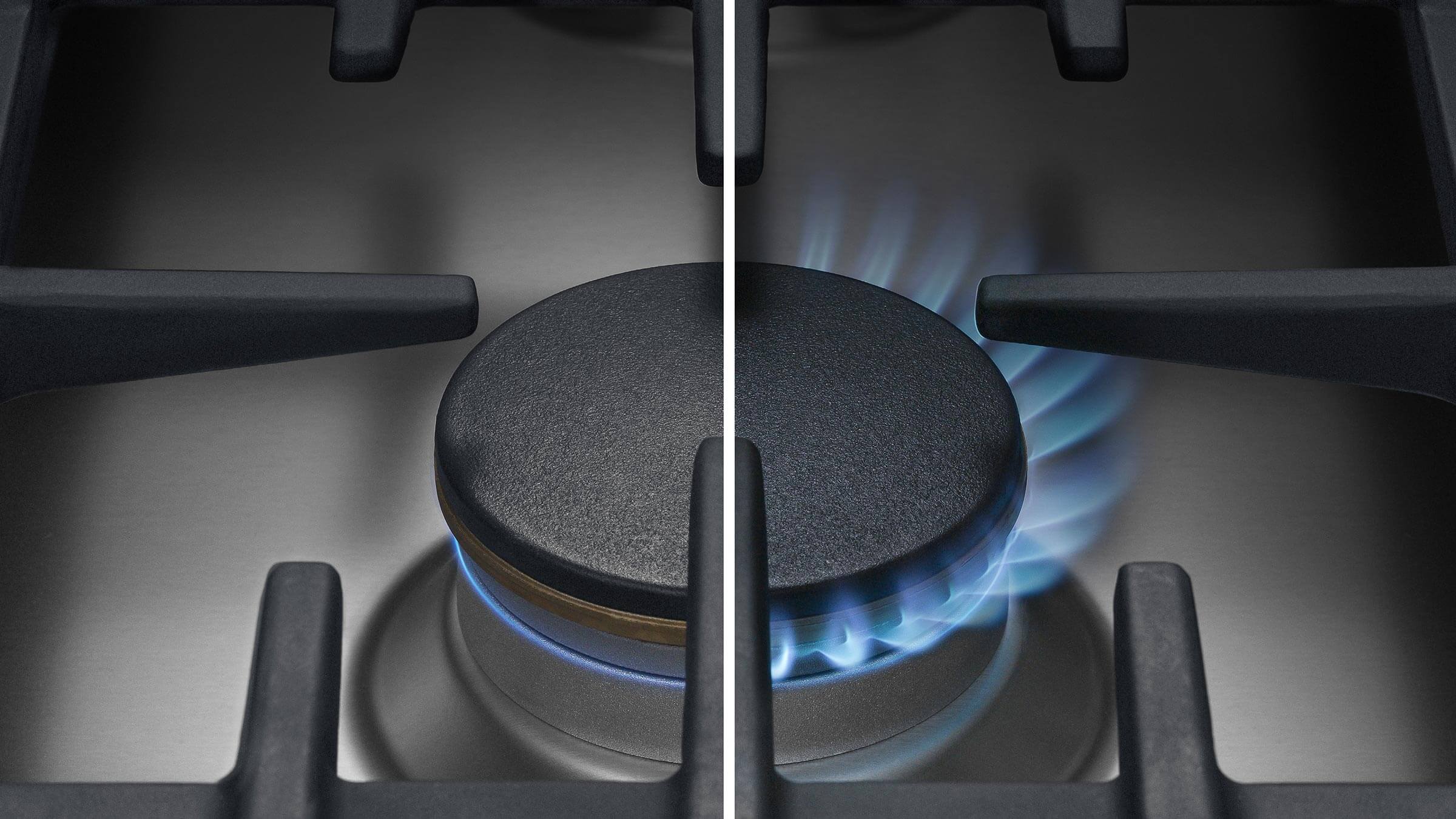

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames. The true convection system uses both the fan and heat element together to heat up quickly and actively distribute even temperatures throughout the oven.

Total Control

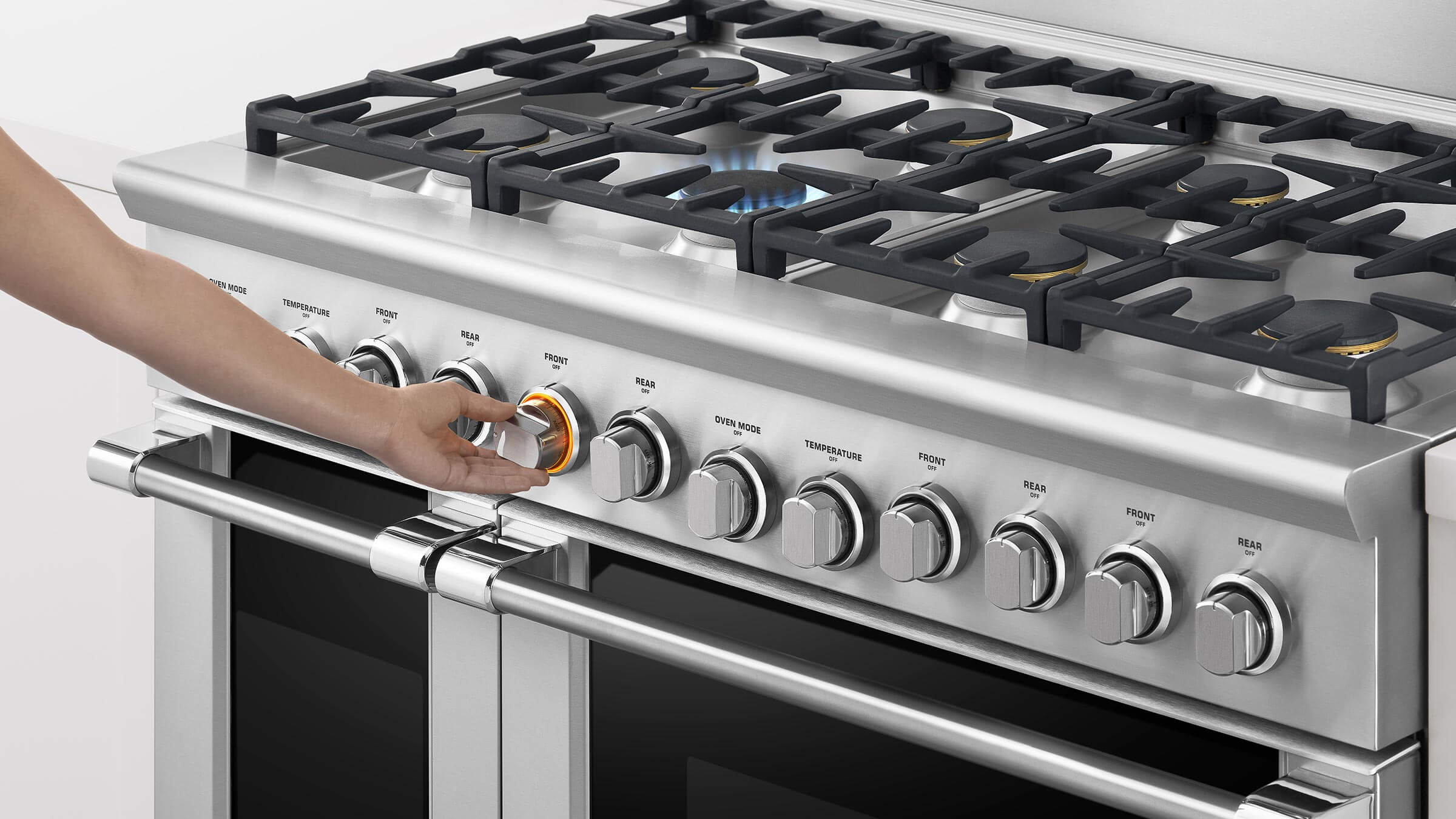

From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have True Convection and electronic oven control for precise and consistent oven temperatures delivering superior performance.

Consistent Broiling

The DCS Dual Fuel Range broiler provides an even heat that covers a very large surface area -- perfect for browning a fully loaded oven tray.

Easy to Clean

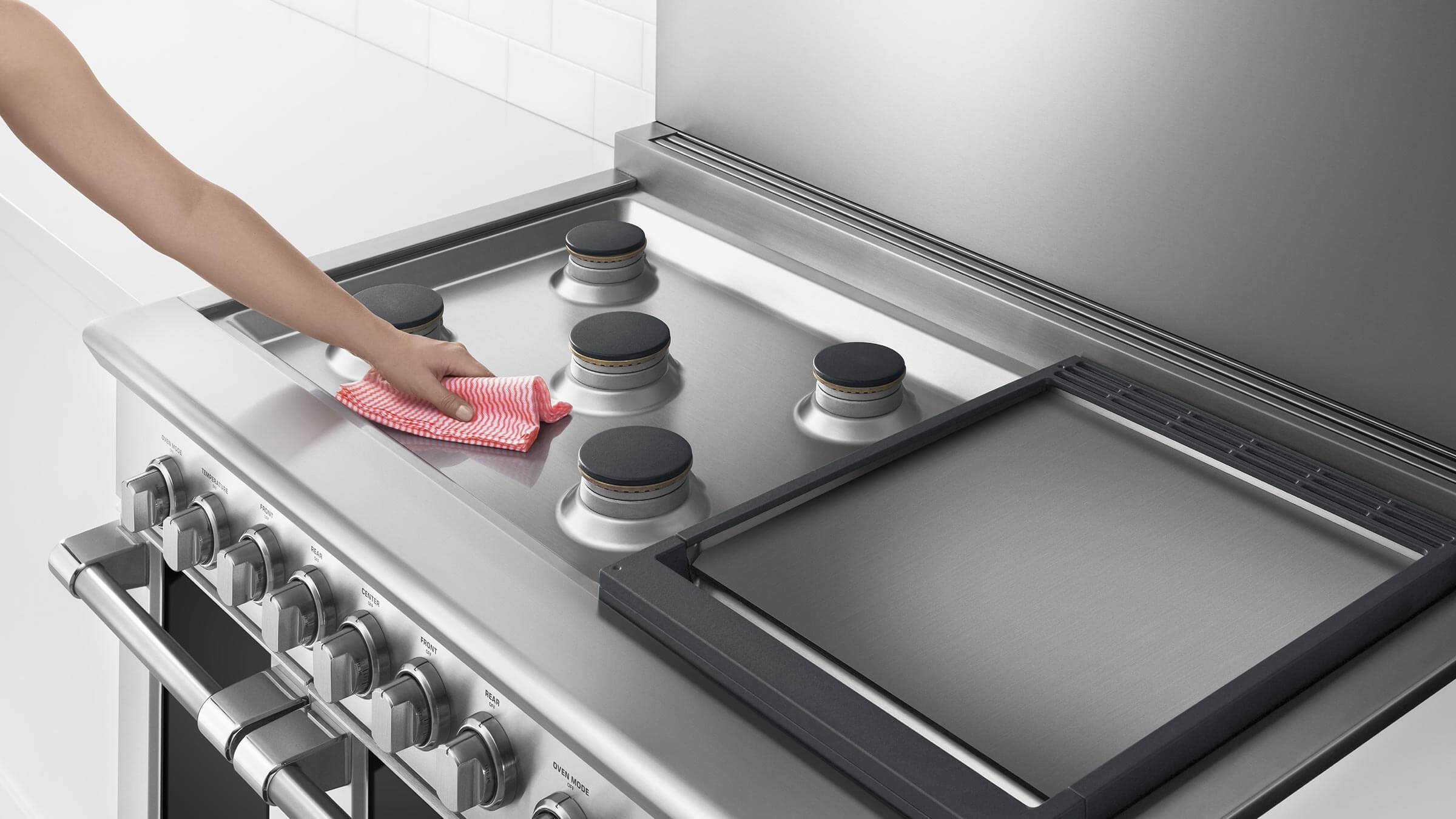

A continuous sealed cooktop surface and a pyrolytic self-cleaning oven with removable side racks allow easy cleaning.

Information at a Glance

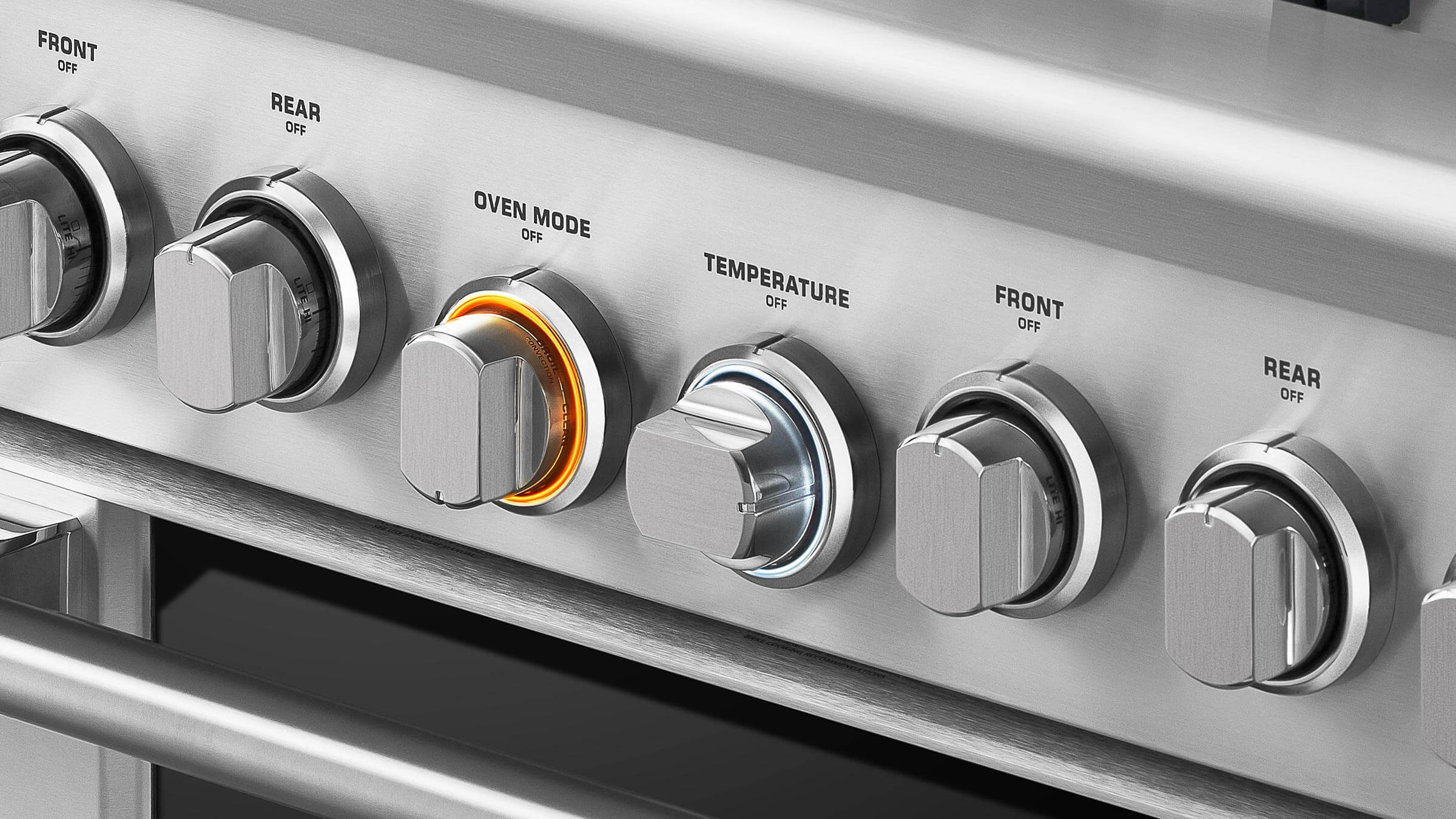

LED halo control dials for information at a glance. White -- heating up; orange -- temperature is reached; red -- self-cleaning mode.

Cooking Flexibility

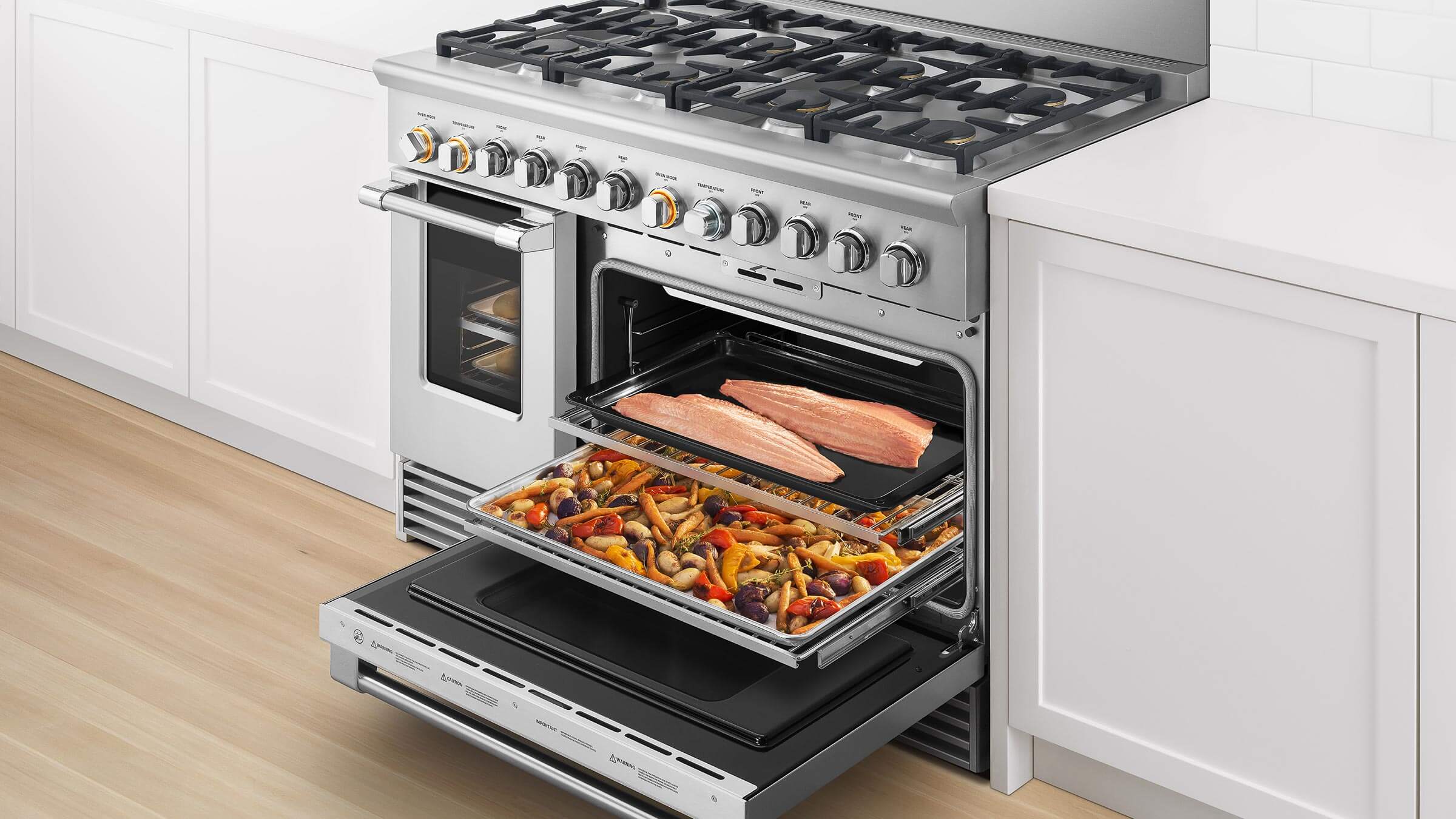

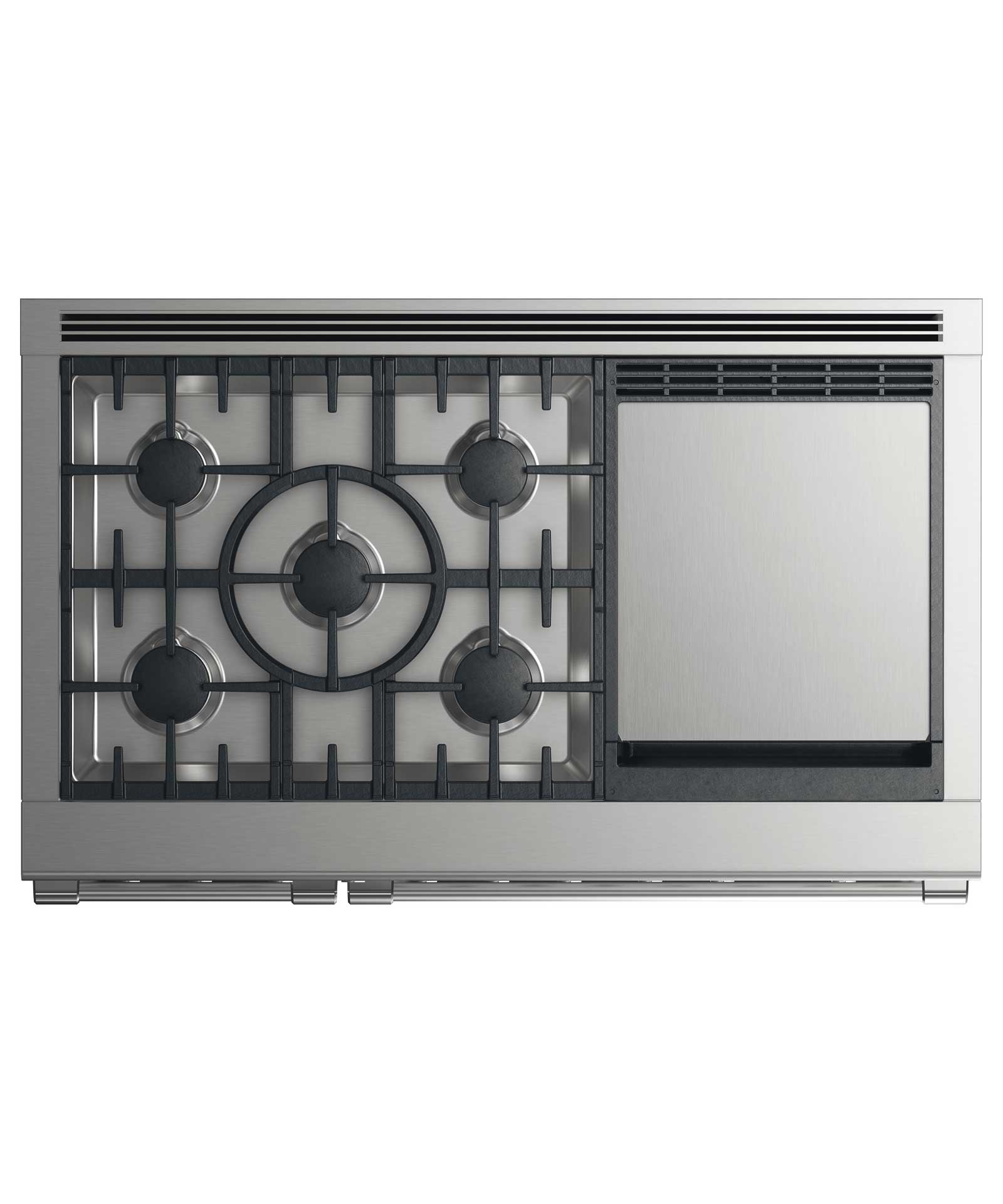

Delivering 12% more usable space than models with exposed bake elements, and a full extension telescopic racking system, this oven is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop. The griddle plate allows you to cook several foods at one time without the need for pots and pans. Heavyweight stainless steel griddles can be set to desired temperatures and then maintained evenly across the entire griddle surface with temperatures ranging from low to a high of 450

Accessories sold separately
Recommended hoodVS48-48" Pro Hood
Square handle optionAH-R48
Burner ratings
Max burner power19000BTU
Power back left11500BTU
Power back right11500BTU
Power center19000BTU
Power front left15000BTU
Power front right15000BTU
Power griddle24000BTU
Simmer on all burners140°F
Total cooktop power96000BTU
Burners
Dual Flow Burners5
Capacity
Main oven- Total Capacity (AHAM)4.8cu ft
Secondary Oven- Shelf positions5
Secondary Oven- Total Capacity (AHAM)2.1cu ft
Secondary oven- 3/4 extention racks2
Shelf positions5
Cooking Modes
Main oven functions6
Secondary oven functions3
Gas Requirements
Pressure11" to 14" W.C
Measurements
Depth (excluding handle and dials)29 1/8"
Height (excluding vent trim)35 3/4 - 36 3/4"
Performance
Main oven bake4600W
Main oven broil4000W
Secondary oven bake2450W
Secondary oven broil3600W
True Convection Oven2500W
SAFETY
Main oven- Full extention telescopic racks3
Warranty
WarrantyLimited 2 Years Parts & Labor
