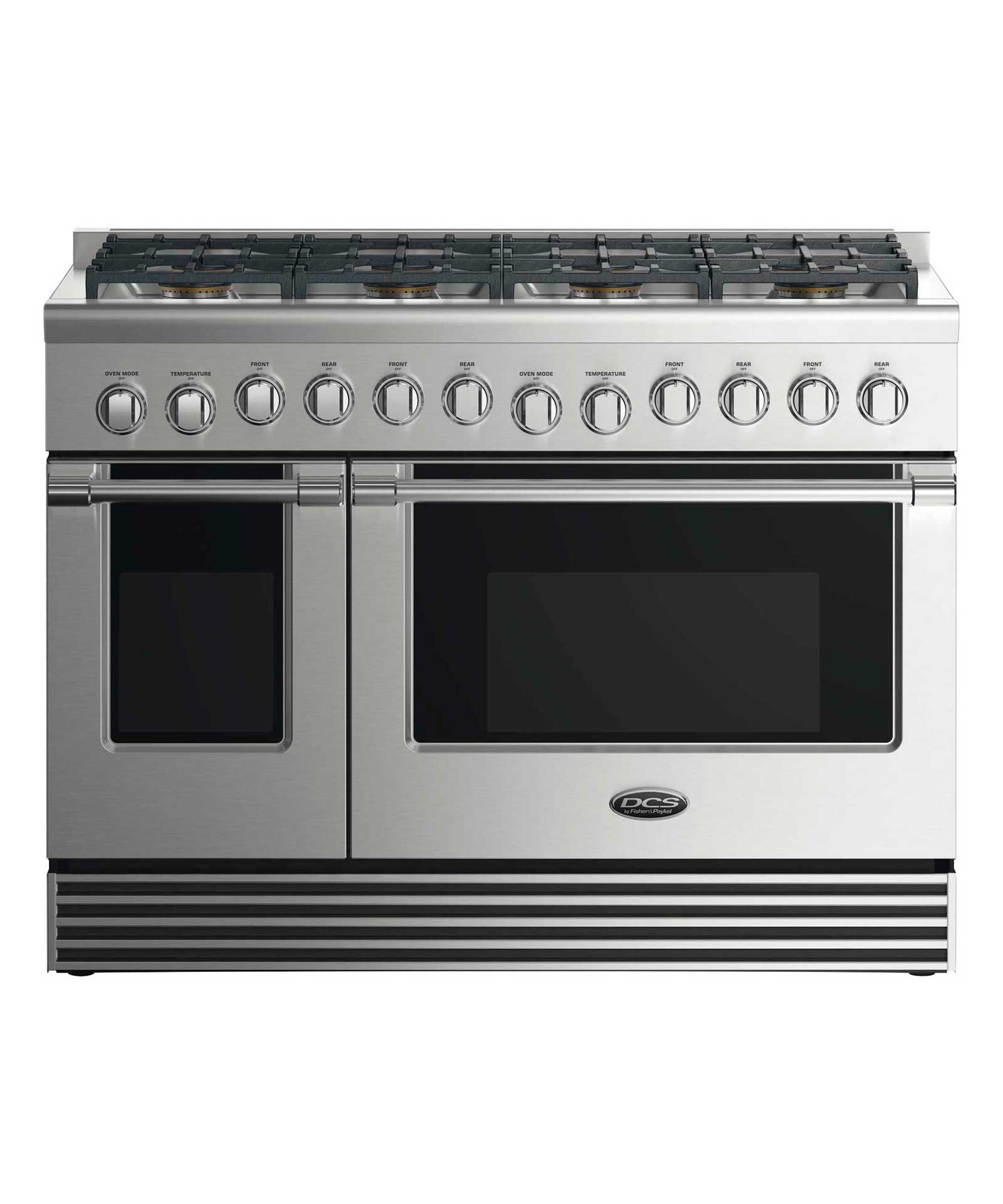

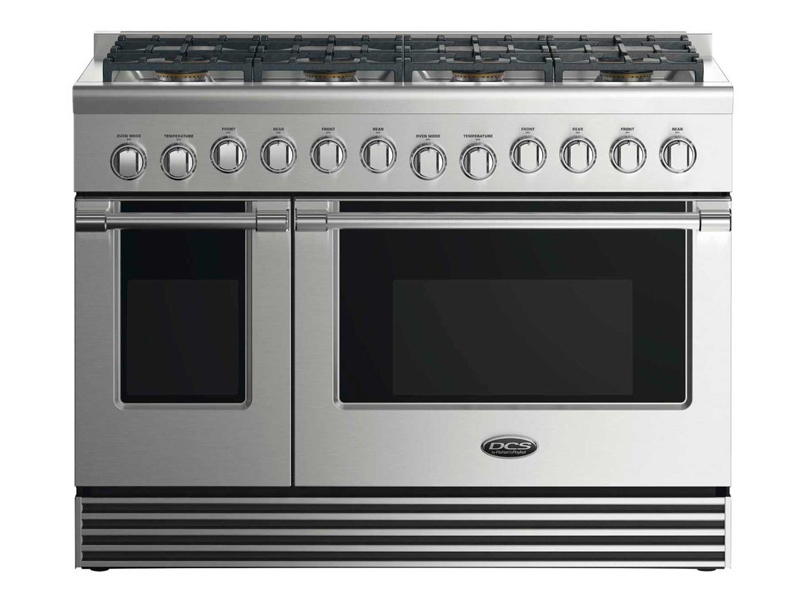

48" DCS Gas Range With 8 Burners - RGV2488N

Category : Ranges
SKU : RGV2488N


Literature

For the chef who demands premium cooking performance, DCS Gas Ranges heat up rapidly and deliver precise oven temperatures. DCS cooktops have unique, patented Dual Flow Burners that let you fire up a fierce heat in an instant -- and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burner powers reach up to an extraordinary 23,500 BTU with total surface output reaching up to 158,000 BTU. The powerful infrared broiler delivers up to 19,000 BTU and provides intense heat directly to the food -- perfect for getting a crisp surface while retaining the moisture inside.

Perfect Heat

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a gentle 140°F full surface simmer. DCS Gas Range ovens heat-up very quickly and deliver precise oven temperatures, with a powerful infrared broiler delivering up to 19,000 BTUs (NG models) of intense heat -- perfect for getting a crisp surface while retaining the moisture inside.

Total Control

From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have electronic oven control for precise and consistent oven temperatures delivering superior performance.

Easy to Clean

A sealed cooktop surface coupled with a commercial-style stainless steel finish allow easy cleaning.

Information at a Glance

LED halo control dials for information at a glance. White -- heating up; orange -- temperature is reached; red -- self-cleaning mode.

Cooking Flexibility

Delivering 12% more usable space than models with exposed bake elements, and a full extension telescopic racking system, this oven is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop.

Kitchen Family Match

Handle options -- round or square -- to suit any kitchen and designed to match the DCS professional kitchen family.

Consistent Broiling

The DCS Dual Fuel Range broiler provides an even heat that covers a very large surface area -- perfect for browning a fully loaded oven tray.





Accessories sold separately
Recommended hoodVS48-48" Pro Hood
Square handle optionAH-R48
Burner ratings
Max burner power23500BTU
Power back centre18500BTU
Power back centre (2)18500BTU
Power back left18500BTU
Power back right18500BTU
Power front centre18500BTU
Power front centre (2)18500BTU
Power front left23500BTU
Power front right23500BTU
Simmer on all burners140°F
Total cooktop power158000BTU
Burners
Dual Flow Burners8
Capacity
Main oven- Shelf positions5
Main oven- Total Capacity (AHAM)5.3cu ft
Secondary Oven- Shelf positions5
Secondary Oven- Total Capacity (AHAM)2.4cu ft
Secondary oven- 3/4 extention racks2
Cooking Modes
Main oven functions3
Secondary oven functions2
Gas Requirements
Pressure6" to 9" W.C
Measurements
Depth (excluding handle and dials)29 1/8"
Height (excluding vent trim)35 3/4 - 36 3/4"
Performance
Main oven- Bake29000BTU
Main oven- Broil19000BTU
Power Requirements
Circuit supply current15A
Supply Frequency60Hz
Supply Voltage120V
Wire3
SAFETY
Main oven- Full extention telescopic racks3
Warranty
WarrantyLimited 2 Years Parts & Labor
