30" Fisher & Paykel LPG Gas Cooktop - CDV3-304HL

Category : Cooktops
SKU : CDV3-304HL


Literature

A powerful high-heat four burner with precision control and performance. Pair with any other appliance in our Professional range.

Overview

  • Your burners can deliver anything from a high 20,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
  • Continuous surface grates designed for pots and pans to move safely across the cooktop
  • Designed to match Professional style appliances
  • Made from quality materials and real stainless steel

Features and Benefits

COOKTOP POWER

Sealed Dual Flow Burners™ deliver cooktop power up to 20,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

PRECISE CONTROL

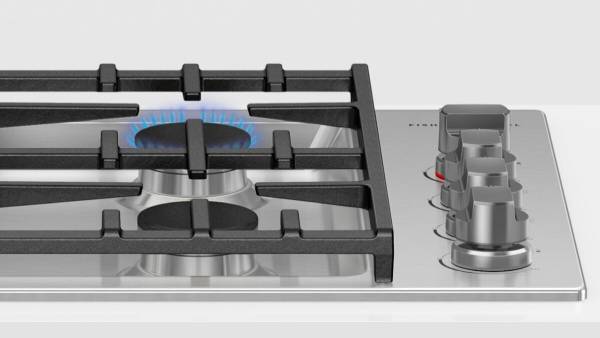

From the highest to the lowest temperatures you get total control with halo-illuminated cooktop dials. A precise full surface simmer is delivered across all burners.

COOKING FLEXIBILITY

The self-locating grates focus the flame on the base of each pan, where it is most required. They are designed for easy and safe sliding of pans across the cooktop surface. For cooking variety, a wok ring accessory is also available.

EASY TO CLEAN

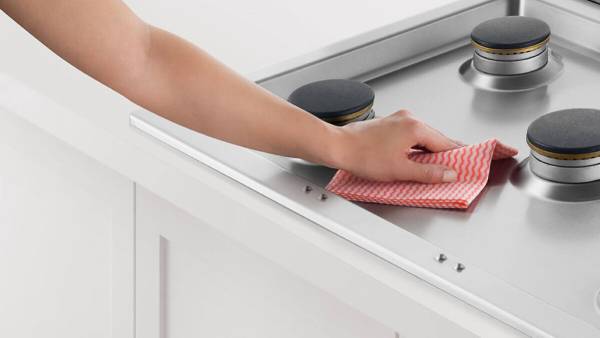

These cooktops are easy to clean with a commercial-style stainless steel finish, sealed burners and a single sheet cooking surface.

INFORMATION AT A GLANCE

LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.

COMPLEMENTARY DESIGN

Built to last with distinctive, bold styling, this cooktop is designed to match the Fisher & Paykel Professional style family of appliances.

Burner ratings
Max burner powerYes
Power back left12,000 BTU
Power back right12,000 BTU
Power front left20,000 BTU
Power front right12,000 BTU
Total cooktop power56,000 BTU
CONTROLS
Metal illuminated dialsYes
Titanium coated, illuminated metal dialsYes
Gas Requirements
Supply Pressure (LPG)11 to 14 W.C
Performance
Sealed Dual Flow Burners™4
Sealed cooking surfaceYes
Simmer on all burners140
Power Requirements
Amperage15A
Supply frequency60Hz
Supply voltage120V
Product Dimensions
Depth21
Height5 1⁄2
Width30
Recommended Back Guards Ventilation
DowndraftHD30
Minimum CFM600 BTU
Pro hoodHCB30-6 N
Traditional hoodES30
SAFETY
ADA compliantYes
Warranty
Parts and labour2 years
