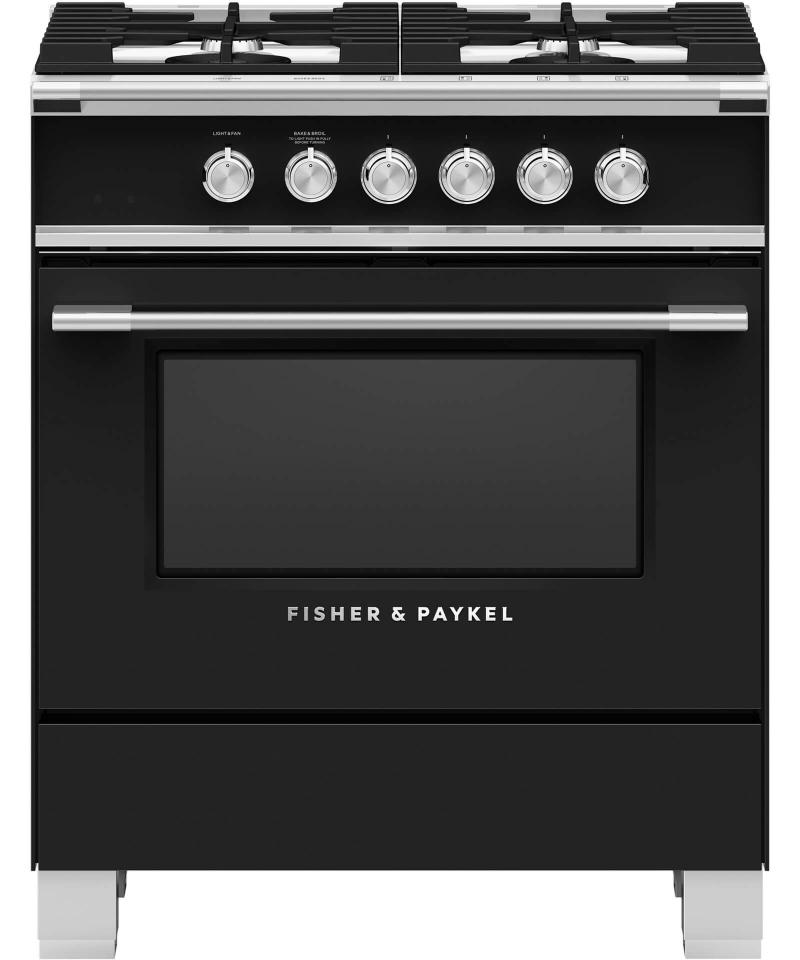

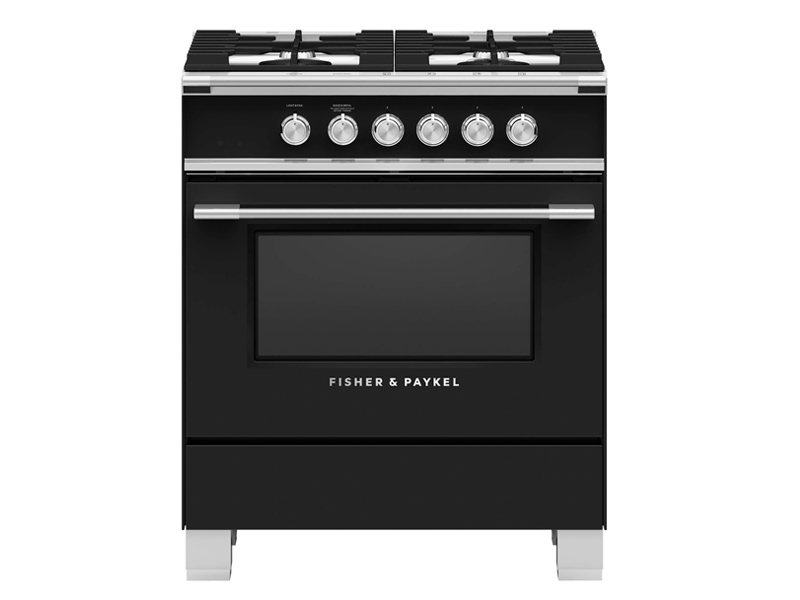

This 30 Fisher & Paykel range gives you the large oven capacity to cook multiple dishes. Its instant heat and precise control add to the classic stylish finish.

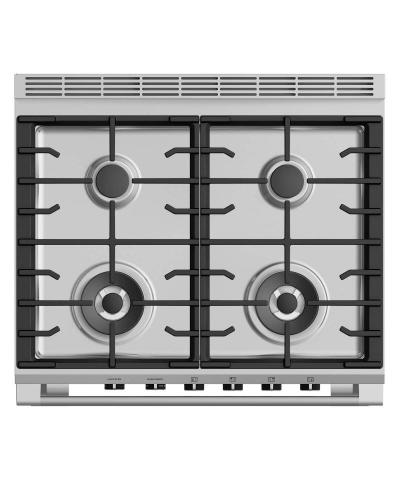

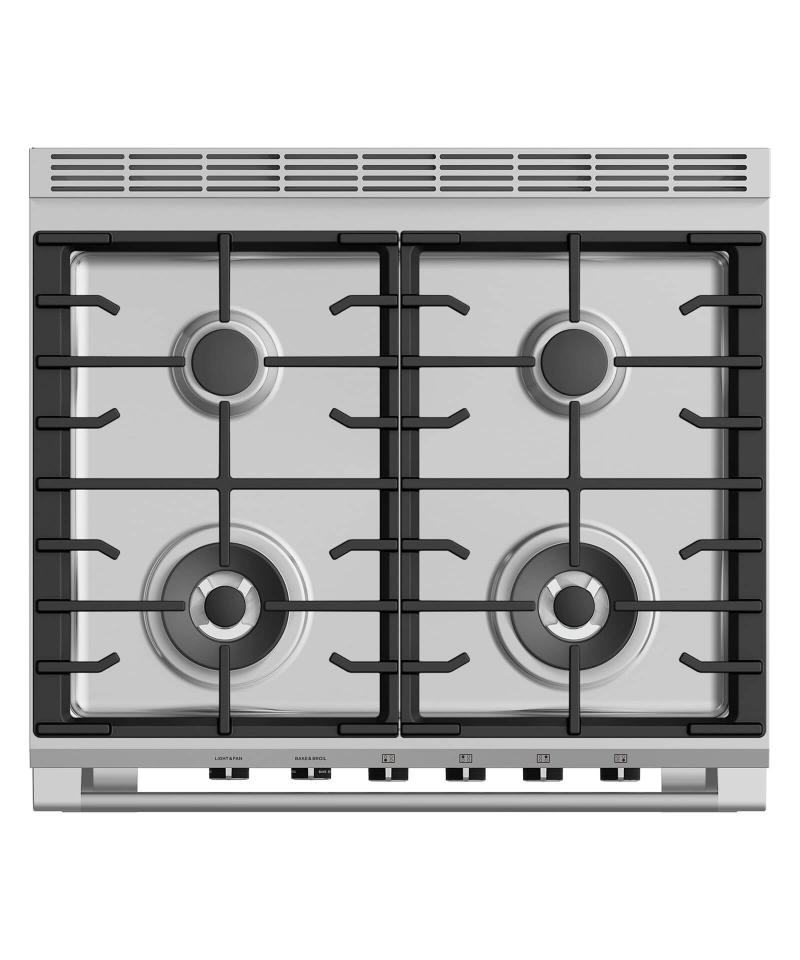

- Gas cooktop with four burners
- Gas oven with 3.5 cu ft total capacity
- 3 oven functions
- Choice of four different colors
- Handy storage drawer
Design quality

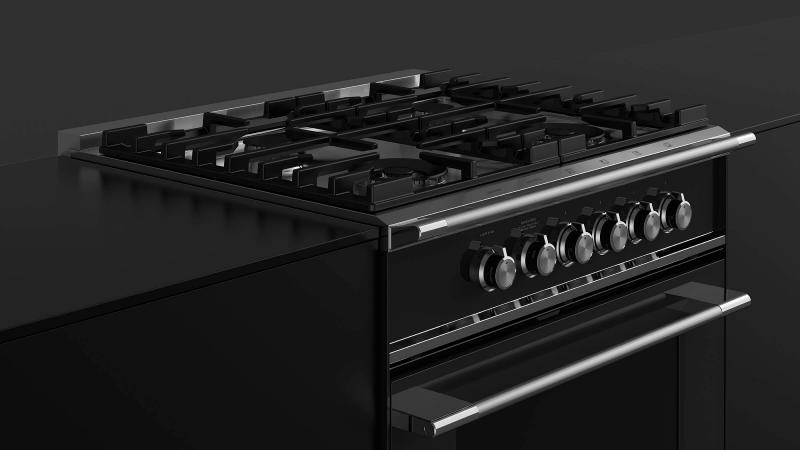

This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door, rounded hob rail and glowing halo dials.
Large capacity

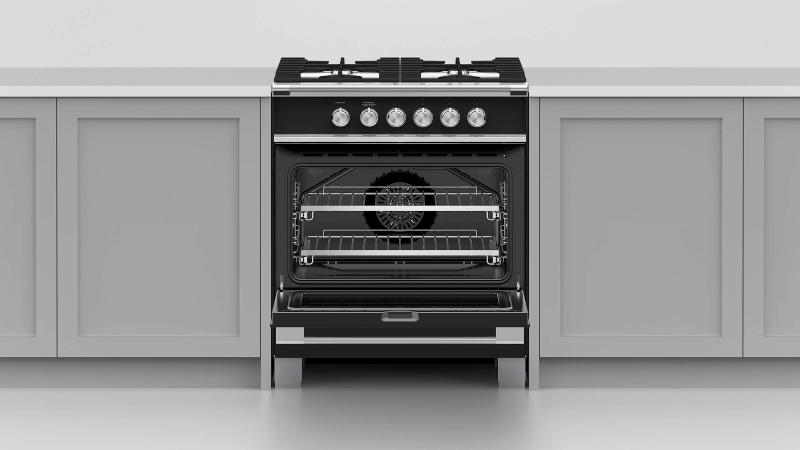

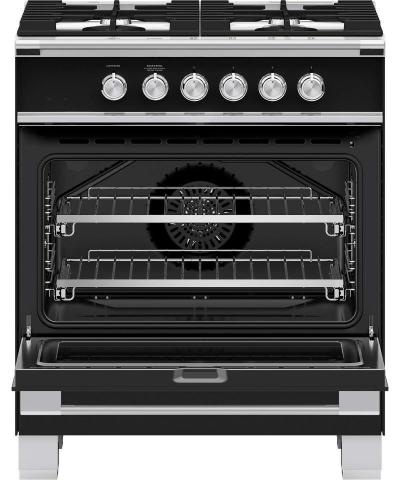

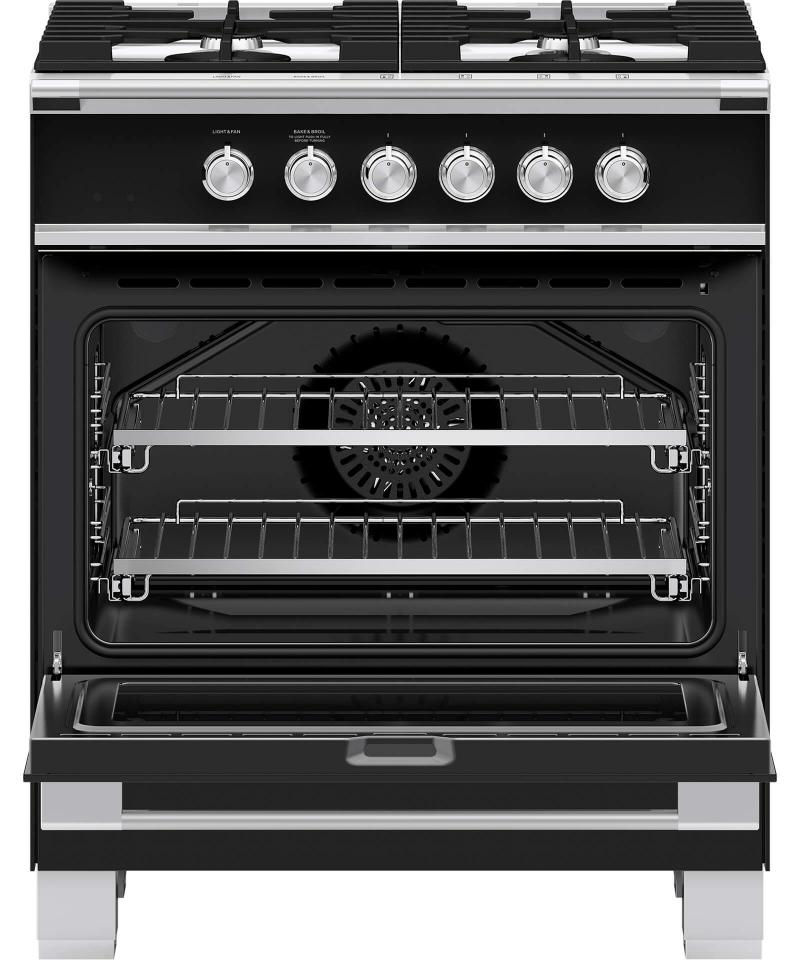

The large 3.5cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.

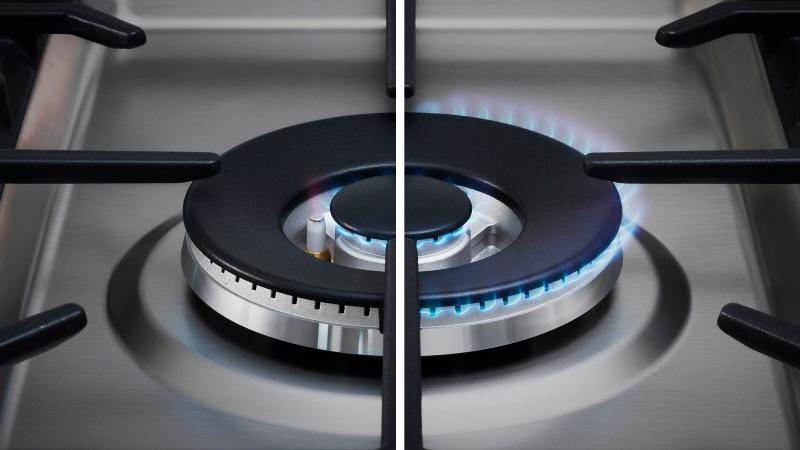

Performance power
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
Easy cleaning
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
| DETAILS | |
|---|---|
| UPC Code | 822843813131 |
| Warranty | |
| Warranty | 2 years |
| Cooktop Features | |
| Dishwasher safe trivets | Yes |
| Gas Cooktop- Sealed range top | Yes |
| Hob rail | Yes |
| Hob rear trim | 0 7/8 |
| LPG/Natural gas compatible | Yes |
| Oven Features | |
| AeroTech technology | Yes |
| Concealed element | Yes |
| Electronic ignition | Yes |
| Full extension telescopic sliding shelves | 2 sets (part 578776) |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | Yes |
| Storage drawer | Yes |
| True Convection | Yes |
| Installation cutout dimensions | |
| Depth | 25 1/4 |
| Width | 30 |
| Cooktop Performance | |
| Dual wok burner inner / outer (LPG) x2 | 1000 - 18000BTU |
| Dual wok burner inner / outer (natural gas) x2 | 1000 - 18000BTU |
| Max burner power | 18000BTU |
| Number of Burner | 4 |
| Semi-rapid burner (LPG) x2 | 1500 - 8000BTU |
| Semi-rapid burner (natural gas) x2 | 1500 - 8000BTU |
| Total cooktop power | 52000BTU |
| Oven Performance | |
| Bake | 14000BTU |
| Broil | 11000BTU |
| CoolTouch door | Triple glazed |
| Shelf positions | 7 |
| Capacity | 3.5cu ft |
| Oven functions | |
| Aero Bake | Yes |
| Bake | Yes |
| Maxi Broil | Yes |
| Number of Functions | 3 |
| Cleaning | |
| Acid resistant graphite enamel | Yes |
| Dishwasher safe trivets | Yes |
| Removable oven door/s | Yes |
| Removable shelf runners | Yes |
| SAFETY | |
| Advanced cooling system | Yes |
| Anti-tilt bracket | Yes |
| Auto re-ignition system | Yes |
| Balanced oven door | Yes |
| CoolTouch door | Yes |
| Full extension telescopic sliding shelves | Yes |
| Non-tip shelves | Yes |
| Spill containment | 1/2 gallon |
| CONTROLS | |
| Interior light | Yes |
| Laser etched graphics | Yes |
| Power Requirements | |
| AMP draw | 15 |
| Supply frequency | 60 |
| Supply voltage | 120 |
| Gas Requirements | |
| Supply Pressure (LPG) | 11 W.C.P |
| Supply Pressure (natural gas) | 4 W.C.P |
| Accessories | |
| 2-pc grill system (Broil pan & Grill rack) | Yes |
| Broil pan | Yes |
| Chromed shelf runners | 1 set |
| Full extension sliding shelves | 2 sets (part 578776) |
| Grill rack | Yes |
| Hob rear trim (optional) | 3 1/8 (part 81657) |
| Kick strip, stainless steel (optional) | Part 81660 |
| Small pot support | 1 (part 533981 cast) |
| Wok stand | 1 (part 534678) |
| Style And Series | |
| Product Style | Classic |
