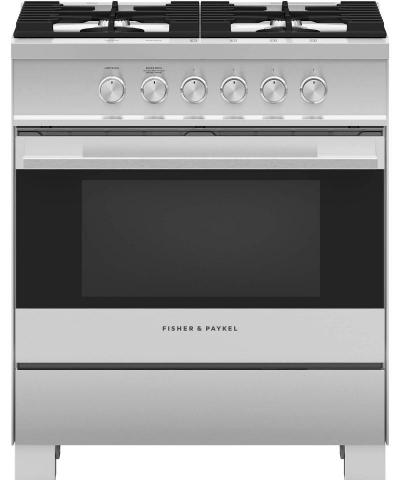

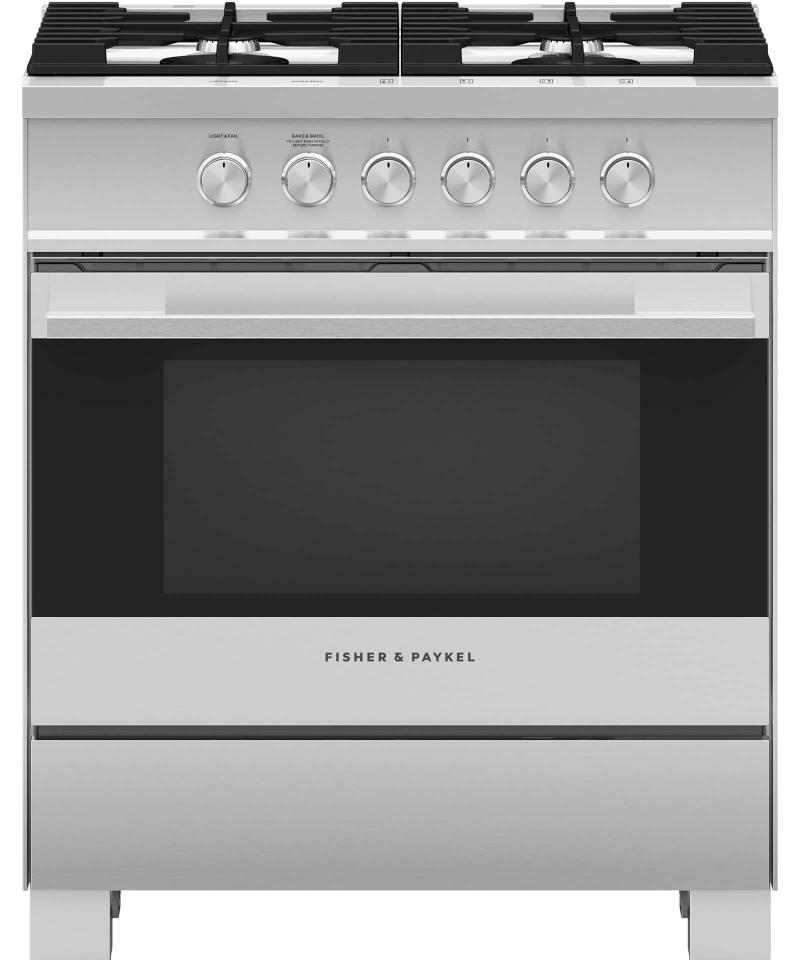

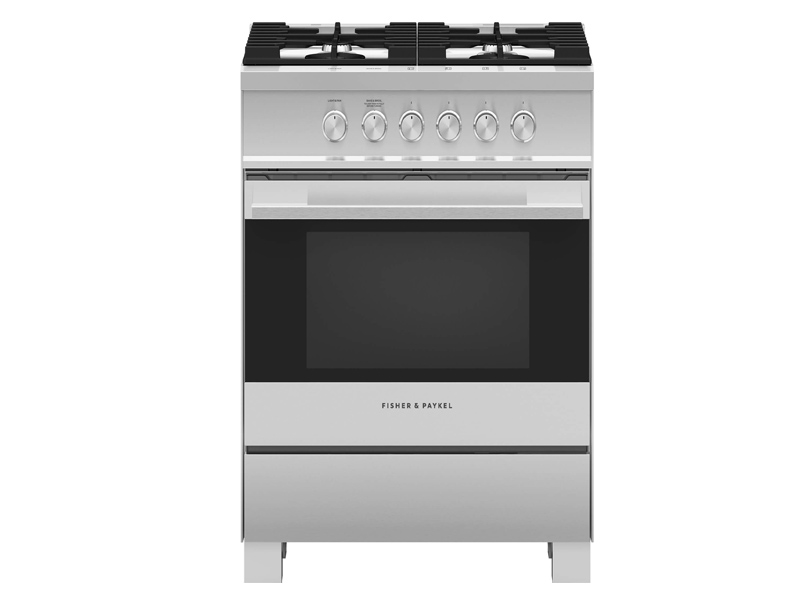

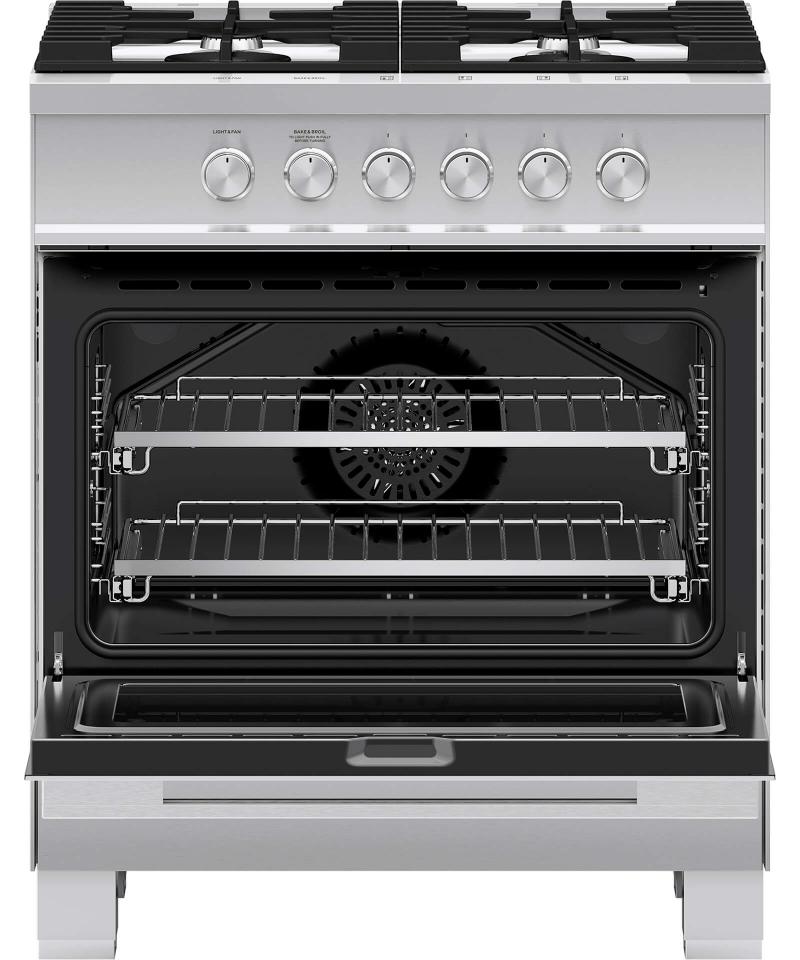

30" Fisher & paykel Contemporary Style Gas Range - OR30SDG4X1

Category : Ranges
SKU : OR30SDG4X1


Literature



This 30 Fisher & Paykel freestanding range gives you the large oven capacity to cook multiple dishes. Its instant heat and precise control add to the contemporary stylish finish.

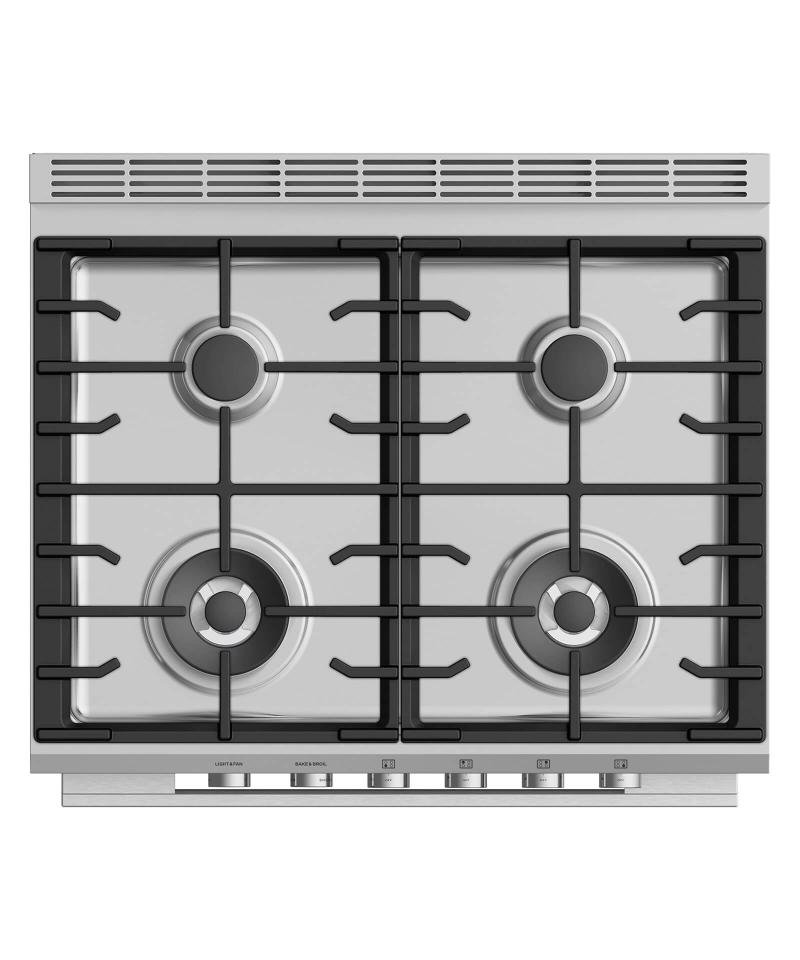

  • Gas cooktop with four burners
  • Gas oven with 3.5 cu ft total capacity
  • 3 oven functions
  • Handy storage drawer

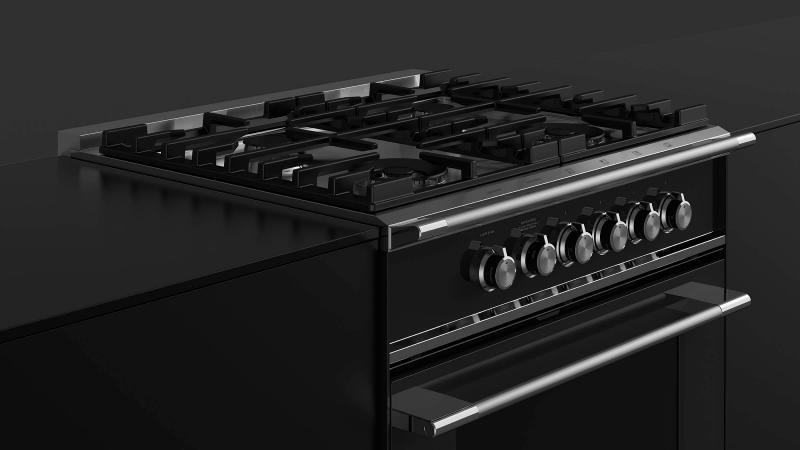

Design quality

This range has been carefully crafted in every detail from performance to durability using quality materials including the soft-close door and turned stainless steel dials.

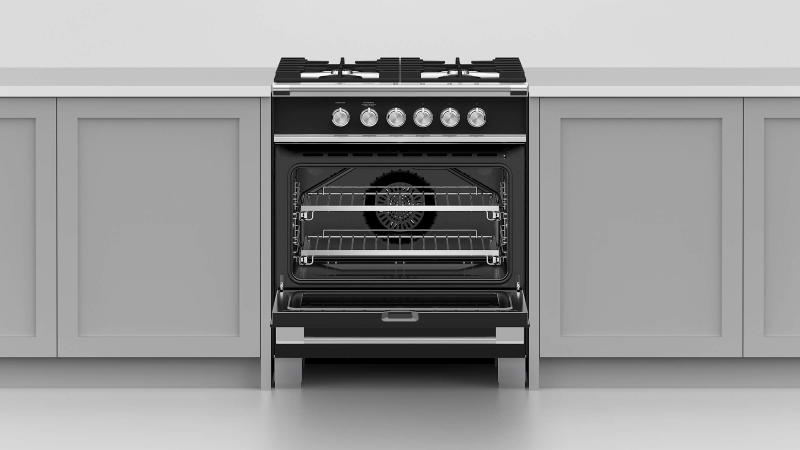

Large capacity

The large 3.5cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.

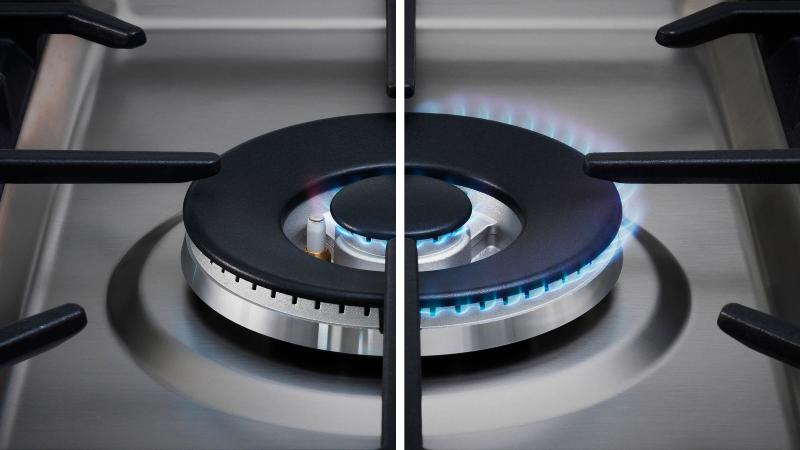

Performance power

Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

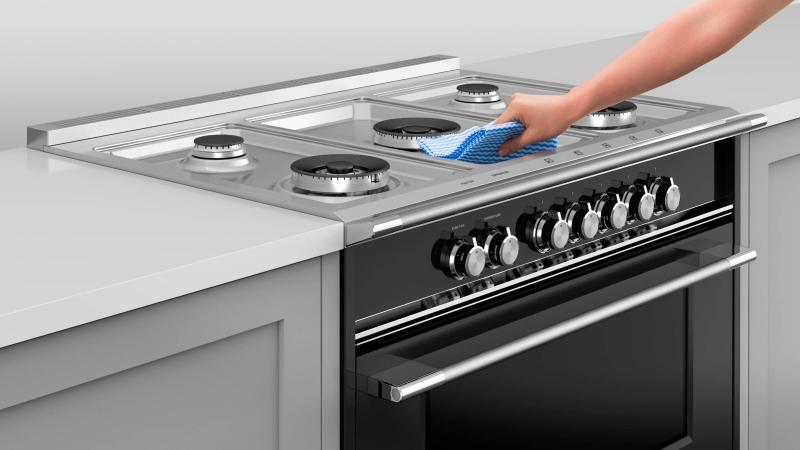

Easy cleaning

With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

DETAILS
UPC Code822843813117
Warranty
Warranty2 years
Cooktop Features
Dishwasher safe trivetsYes
Gas Cooktop- Sealed range topYes
Hob rear trim0 7/8
LPG/Natural gas compatibleYes
Oven Features
Concealed elementYes
Electronic ignitionYes
Full extension telescopic sliding shelves2 sets (part 578776)
Internal light2 x 25W halogen (rear)
Soft open/close doorYes
Storage drawerYes
True ConvectionYes
Installation cutout dimensions
Depth25 1/4
Width30
Cooktop Performance
Dual wok burner inner / outer (LPG) x21000 - 18000BTU
Dual wok burner inner / outer (natural gas) x21000 - 18000BTU
Max burner power18000BTU
Number of Burner4
Semi-rapid burner (LPG) x21500 - 8000BTU
Semi-rapid burner (natural gas) x21500 - 8000BTU
Total cooktop power52000BTU
Oven Performance
Bake14000BTU
Broil11000BTU
CoolTouch doorTriple glazed
Shelf positions7
Capacity3.5cu ft
Oven functions
BakeYes
Convection bakeYes
Maxi BroilYes
Number of Functions3
Cleaning
Acid resistant graphite enamelYes
Dishwasher safe trivetsYes
Removable oven door/sYes
Removable shelf runnersYes
SAFETY
Advanced cooling systemYes
Anti-tilt bracketYes
Auto re-ignition systemYes
Balanced oven doorYes
CoolTouch doorYes
Full extension telescopic sliding shelvesYes
Non-tip shelvesYes
Spill containment1/2 gallon
CONTROLS
Interior lightYes
Laser etched graphicsYes
Power Requirements
AMP draw15
Supply frequency60
Supply voltage120
Gas Requirements
Supply Pressure (LPG)11 W.C.P
Supply Pressure (natural gas)4 W.C.P
Accessories
2-pc grill system (Broil pan & Grill rack)Yes
Broil panYes
Chromed shelf runners1 set
Full extension telescopic shelves2 sets (part 578776)
Grill rackYes
Hob rear trim (optional)3 1/8 (part 81657)
Kick strip, stainless steel (optional)Part 81660
Small pot support1 (part 533981 cast)
Wok stand1 (part 534678)
Style And Series
Product StyleContemporary
