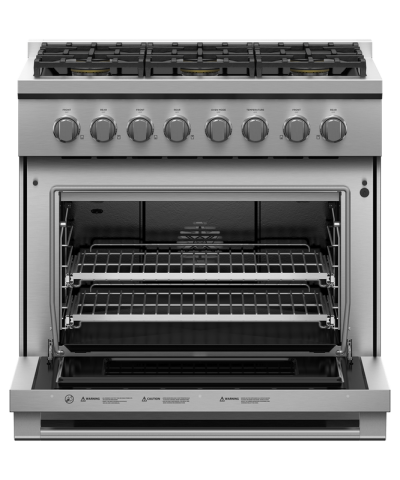

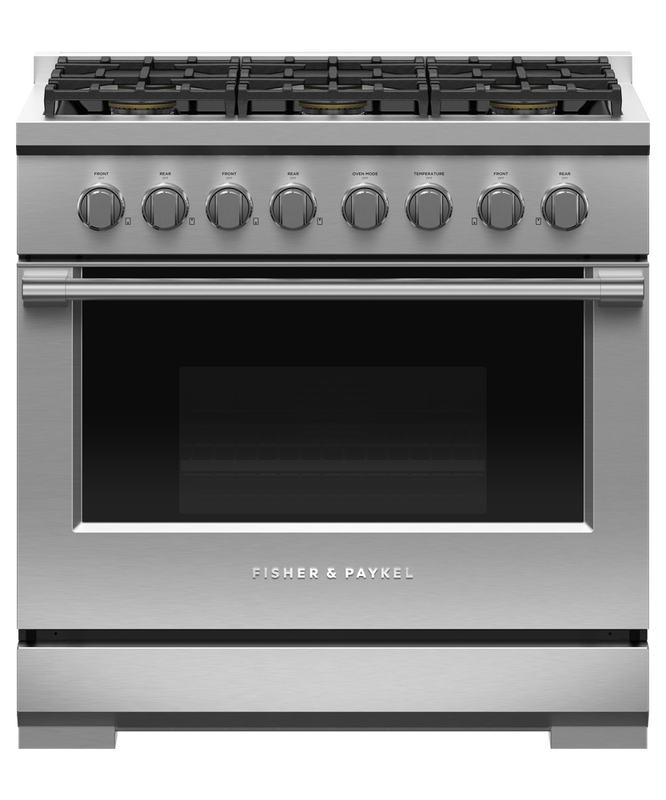

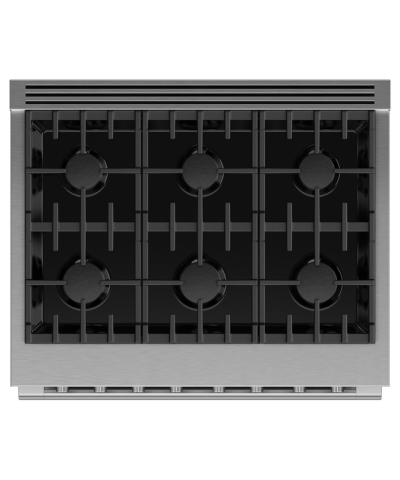

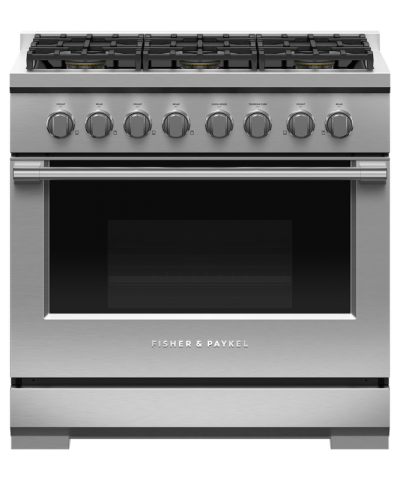

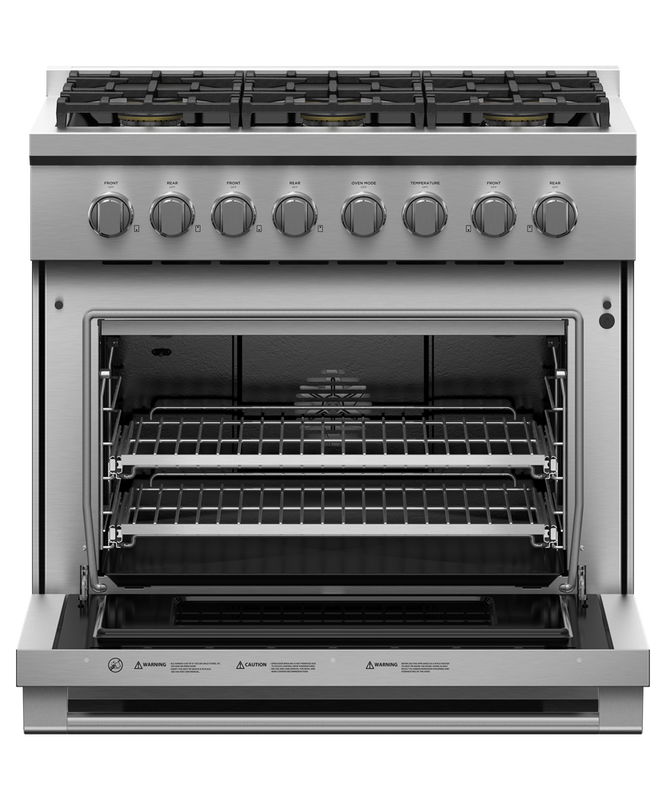

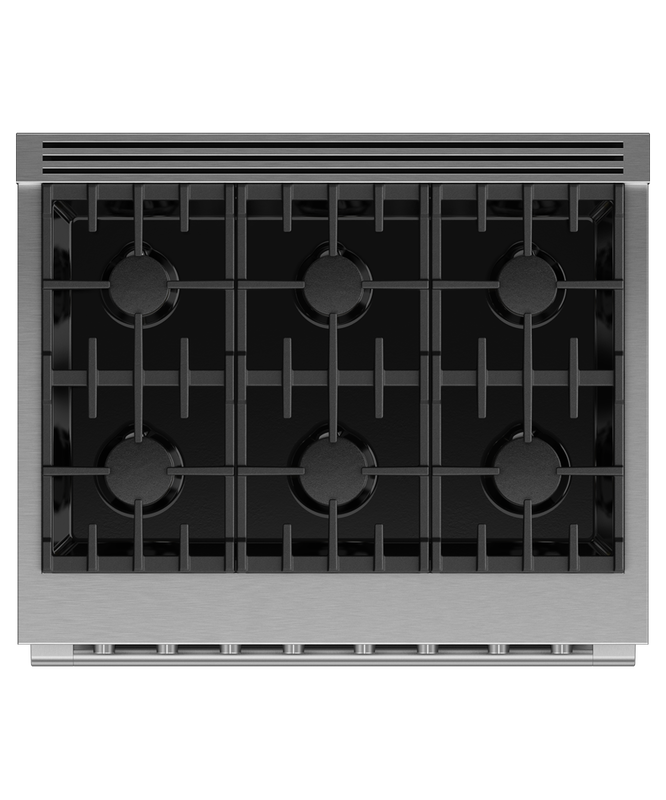

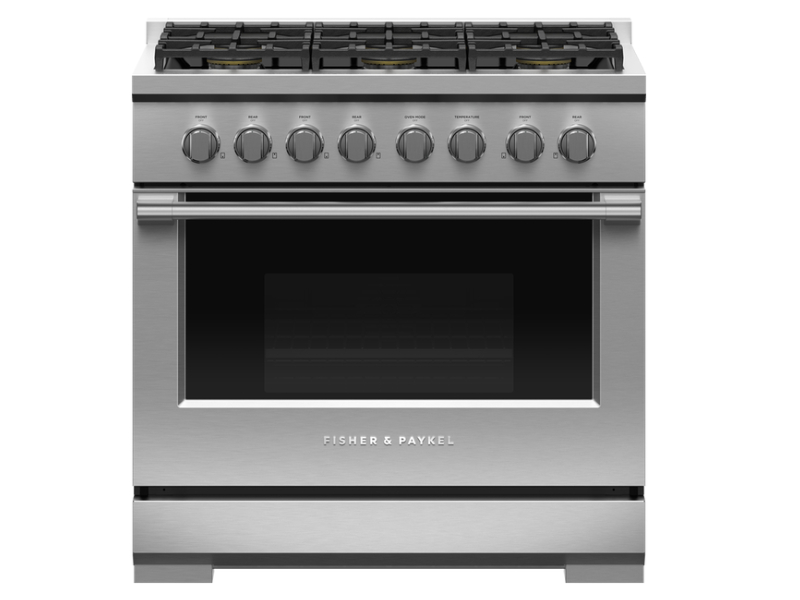

36" Fisher & Paykel Series 7 Professional Natural Gas Range With 6 Burners - RGV3-366-N

Category : Ranges
SKU : RGV3-366-N


Literature

Professional style with power. 23,500 BTU gas burners paired with a large capacity gas oven.

Overview

  • Top burner heat of 23,500 BTU, for seriously fast boiling
  • Gas oven with 5.3 cu ft total capacity
  • Non-tip full-extension shelves in main cavitiy for safe removal of hot dishes
  • Made from quality materials and real stainless steel

Features and Benefits

Generous capacity

Featuring a generous total capacity of 5.3 cu ft, with enough room to fit a 32 lb turkey and full-sized baking sheets.

Cooktop power

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

Cooking flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.

Design quality

This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.

Easy to clean

Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.

Total control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.

Accessories
Square handle optionAH-R36
Capacity
Capacity5.3
Usable capacity4.0
CONTROLS
Star K CertificationYes
Titanium coated, illuminated metal dialsYes
Gas Requirements
Fitting and pipe NPT, min. ⅝ ∅ flex line
Supply Pressure (natural gas)6 to 9 W.C
Oven Features
Broil panYes
Electronic oven controlYes
Full extension telescopic sliding shelves3
Internal lightYes
Oven functions
BakeYes
BroilYes
Convection bakeYes
Slow cookYes
Oven Performance
BakeYes
Bake power28,000
Broil power18,500
Infrared BroilerYes
Main Oven Shelf Positions5
Main Oven Usable Capacity4cu ft
Power Requirements
Amperage15
Supply frequency60
Supply voltage120
Product Dimensions
Depth29 1⁄8
Height35 3⁄4 - 36 3⁄4
Width35 7⁄8
Rangetop features
Sealed Dual Flow Burners™6
Sealed range topYes
Simmer on all burners140°F
Vent trim includedFlat vent trim
Rangetop Performance
Max burner power23,500
Power back centre18,500
Power back left18,500
Power back right18,500
Power front centre18,500
Power front left23,500
Power front right23,500
Total cooktop power121,000
Recommended back guards and ventilation
Combustible situationBGRV3-3036H
Non combustible situationBGRV2-3036 / BGRV2-1236
Recommended hoodHCB36-6_N (36 Professional Range Hood) / HCB36-12_N (36 Professional Range Hood, Dual Blower)
SAFETY
ADA compliantYes
Full extension telescopic sliding shelves3
Warranty
Parts and labour2 years
