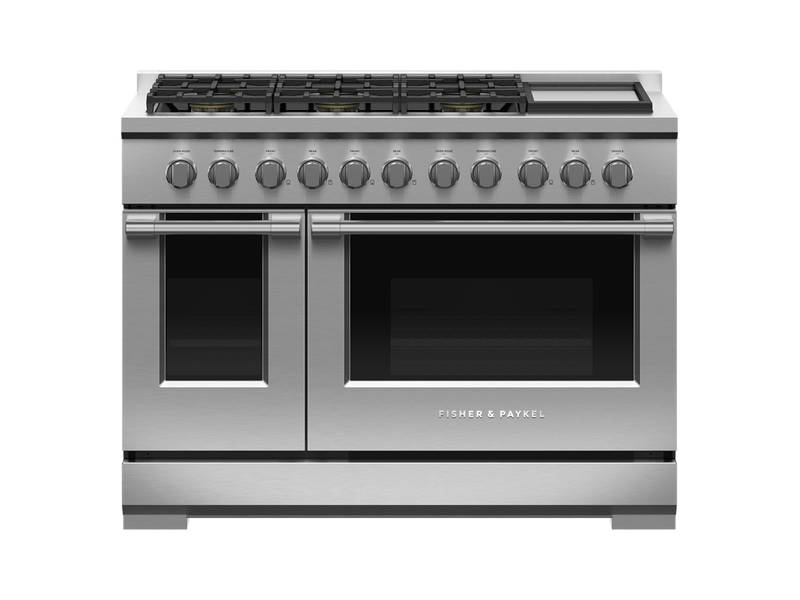

With Professional styling, this large range has six burners delivering powerful high heat, a griddle and two gas ovens.
Overview
- Griddle with burners that deliver up to 23,500 BTU heat per burner, for seriously fast boiling

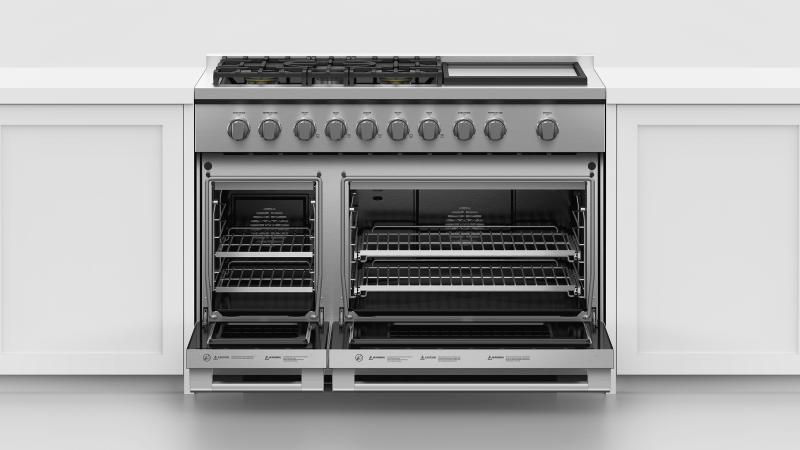

- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavitiy for safe removal of hot dishes
- Made from quality materials and real stainless steel
Features and Benefits
GENEROUS CAPACITY

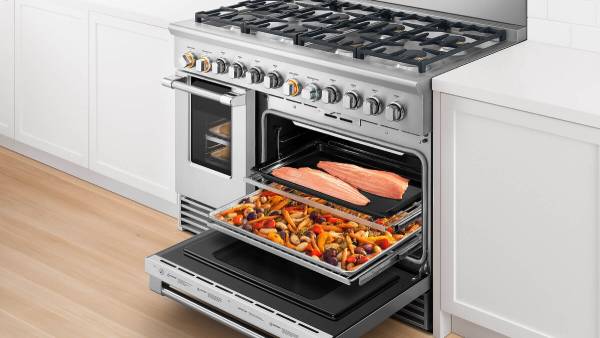

Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey. The griddle plate allows you to cook several foods at once.
COOKTOP POWER

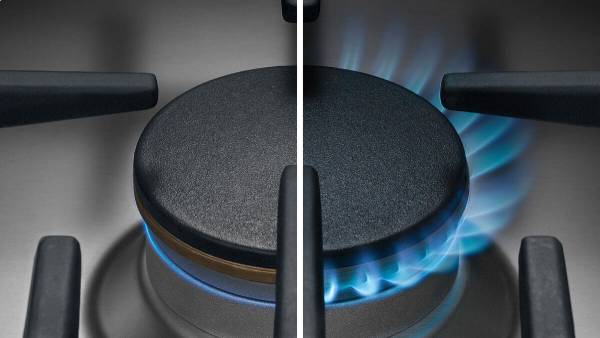

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
COOKING FLEXIBILITY

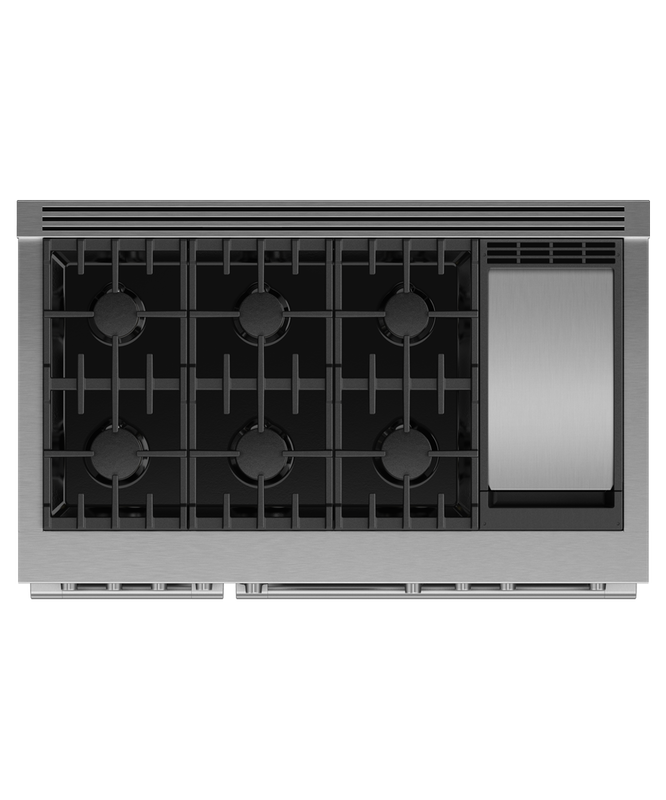

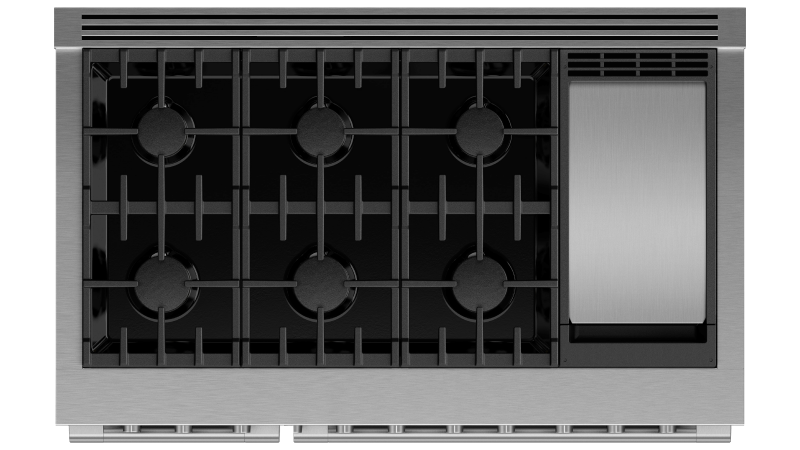

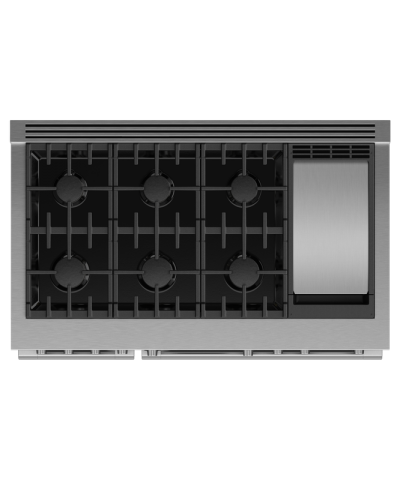

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
DESIGN QUALITY
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
EASY TO CLEAN
Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.
TOTAL CONTROL

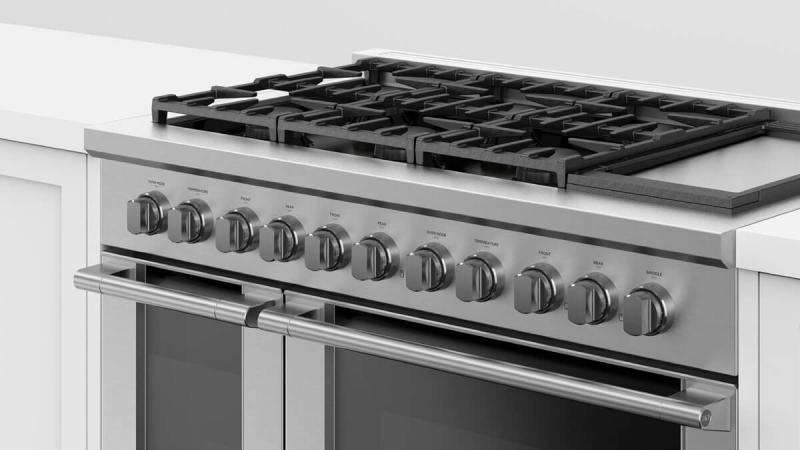

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
| Burner ratings | |
|---|---|
| Power griddle | 16500BTU |
| Power front right | 18500BTU |
| Power front left | 23500BTU |
| Power front centre | 18500BTU |
| Power back right | 18500BTU |
| Power back left | 18500BTU |
| Power back centre | 18500BTU |
| Maximum burner power | 23500 BTU |
| Total cooktop power | 132500 BTU |
| Accessories (sold separately) | |
| Square handle option | AH-R48 |
| Capacity | |
| Shelf positions | 5 |
| Shelf positions | 5 |
| Total capacity (main oven) | 5.3cu ft |
| Total capacity second oven | 2.4cu ft |
| Usable capacity (main oven) | 3.9cu ft |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| CONTROLS | |
| Metal illuminated dials | Yes |
| Gas Requirements | |
| Supply Pressure (natural gas) | 6 to 9 W.C |
| Oven Features | |
| Auto re-ignition system | Yes |
| Broil pan | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | Yes |
| Infrared Broiler | Yes |
| Internal light | Yes |
| Oven functions | |
| Bake | Yes |
| Broil | Yes |
| Convection bake | Yes |
| Number of functions | 4 |
| Slow cook | Yes |
| Oven Performance | |
| Bake power | 19700BTU |
| Broil | 18500 BTU |
| Secondary oven - Bake power | 18000BTU |
| Power Requirements | |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product Dimensions | |
| Depth | 29 1⁄8 |
| Height | 35 3⁄4 - 36 3⁄4 |
| Width | 47 7⁄8 |
| Rangetop features | |
| Sealed range top | Yes |
| Vent trim included | Yes |
| Rangetop Performance | |
| Number of Burner | 6 |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48 Professional Range Hood, Dual Blower) |
| SAFETY | |
| ADA compliant | Yes |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Electronic oven control | Yes |
| Internal light | Yes |
| Secondary oven functions | |
| Bake | Yes |
| Convection bake | Yes |
| Number of secondary oven functions | 4 |
| Proof | Yes |
| Slow cook | Yes |
| Warranty | |
| Parts and labour | Limited 2 years |
