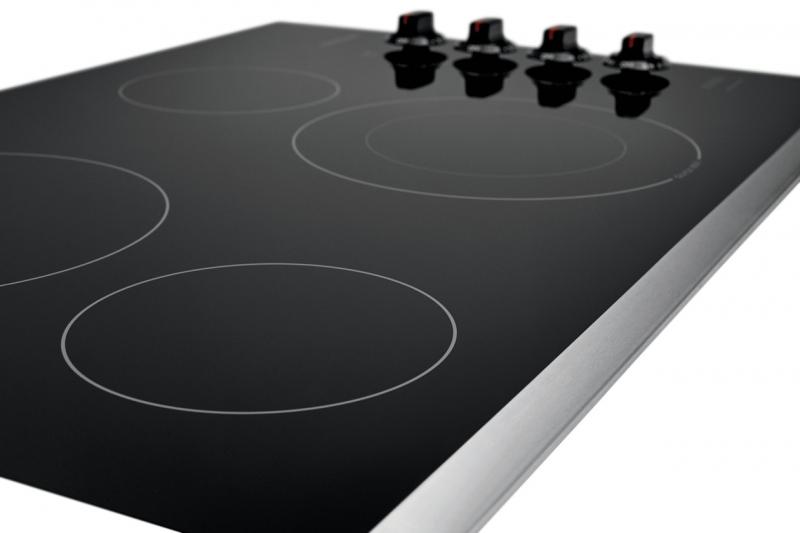

30" Frigidaire Frameless Electric Cooktop - FFEC3025US
You may also like
Features
Quick Boil Element
Get meals on the table faster with our powerful 3,000W Quick Boil element.
SpaceWise Expandable Element
Flexible element expands to accommodate various sizes of cookware.
Frigidaire Fit Promise
We promise that your new 30" or 36"Frigidaire brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for modification costs up to $100.
Ceramic Glass Cooktop
For a more beautiful cooktop that's easy to clean.
Ready-Select Controls
Easily control your cooking temperature with our easy-to-use controls.
Hot Surface Indicator
Alerts you when your cooktop may be too warm to touch.
Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our single electric wall ovens.
| Dimensions and Volume | |
|---|---|
| Height | 2 5/8 |
| Width | 30 5/8 |
| Depth | 21 3/8 |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Frigidaire Fit Promise | Yes |
| Product Weight | 29.45 lbs |
| Prop 65 Label | No |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| COOKTOP | |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Right Rear Element Burner Size | 6 |
| Left Front Element Burner Size | 6 |
| Left Rear Element Burner Size | 6 |
| Right Front Element Burner Size (Small) | 6 |
| Right Front Element Burner Size (Large) | 9 |
| Right Front Element Burner (Small) | 1,600 Watts |
| Right Front Element Burner (Large) | 3,000 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner | 1,200 Watts |
| Left Rear Element Burner | 2,500 Watts |
| Exterior | |
| Knob Color | Black |
| Knob Material | Plastic |
| CONTROLS | |
| Sabbath Mode | No |
| Control Location | Right |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 32.9 Amps |
| Connected Load @ 240V | 7.9 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Safety Certifications & Approvals | |
| CSA Listed | Yes |
| UL Listed | Yes |
| ETL Listed | No |
| ADA Compliant | No |
