30" Whirlpool Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates - WCGK5030PB
30" Whirlpool Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates - WCGK5030PS
30" Whirlpool Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates - WCGK5030PB
You may also like
- SpeedHeat™ Burner
- Cooking Flexibility
- EZ-2-Lift™ Hinged Cast-Iron Grates
- 5K BTU Simmer Burner
- 9.1K–12K BTU Multi-Purpose Burners

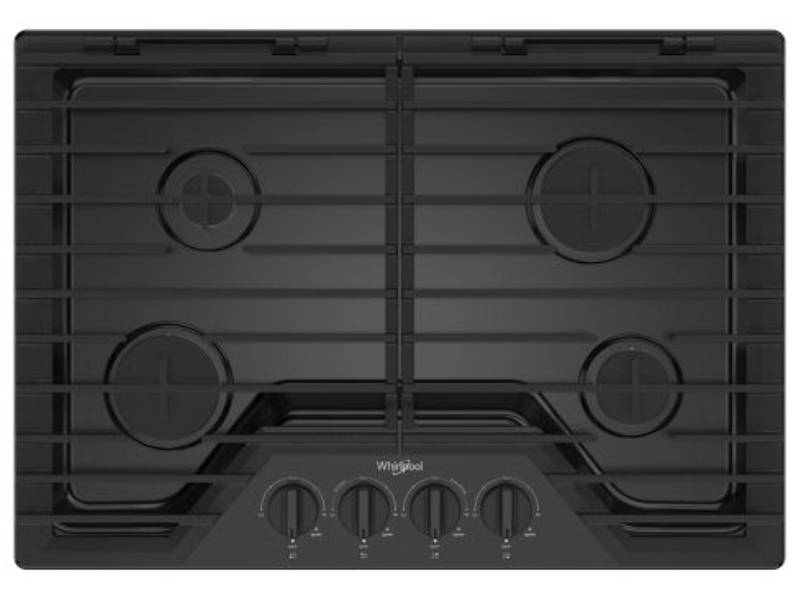

30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K–12K BTU Multi-Purpose Burners are perfect for daily cooking. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
Features

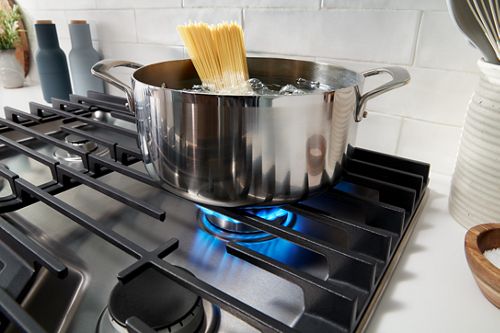

SpeedHeat™ Burner
Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
Cooking Flexibility
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
5K BTU Simmer Burner
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
Additional Features
9.1K–12K BTU Multi-Purpose Burners
Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
Dishwasher-Safe Cast-Iron Grates
Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Upswept SpillGuard™ Cooktop
Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Edge-to-Edge Cast-Iron Grates
Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Sealed Burners
Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Porcelain-Enameled Cooktop
Clean up easily with a smooth, porcelain-enameled surface that makes it simple to wipe up cooktop spills.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
*See Oven/Cooktop Compatibility in specifications for more information.
ADA Compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Description | |
---|---|
Cooktop Type | Traditional |
Combinations With Oven | WOS31ES0 WOS31ES7 WOS51EC0 WOS51EC7 WOS52EM4 WOS72EC0 WOS72EC7H WOS52ES4M WOES3027L WOES5027L WOES7027P WOES3030L WOES5030L WOES5930L WOES7030P |
Size In | 30 |
Configuration and Overview | |
Heating Technology | Gas |
Features | |
Heating Element On Indicator Light | No |
Power Boost | No |
Installs Over Built In Oven | Yes |
Downdraft Vent | No |
Automatic Pan Detection | No |
Power Outage Compatible | Yes |
LP Convertible | Yes - Kit Included |
Hot Surface Indicator Light | No |
Griddle | No |
Automatic Pan Size Adjustment | No |
Digital Display | No |
Cooktop Details | |
Left Rear Element Burner Type | Simmer |
Right Rear Element Burner Type | Power |
Right Front Element Burner Power | 9100BTU |
Left Front Element Burner Power | 12000BTU |
Cooktop Element Style | Sealed Burners |
Left Rear Element Burner Power | 5000BTU |
Right Rear Element Burner Power | 18000BTU |
Right Front Element Burner Type | Standard |
Left Front Element Burner Type | Standard |
Number of Burner | 4 |
Cooktop Configuration | All Burners |

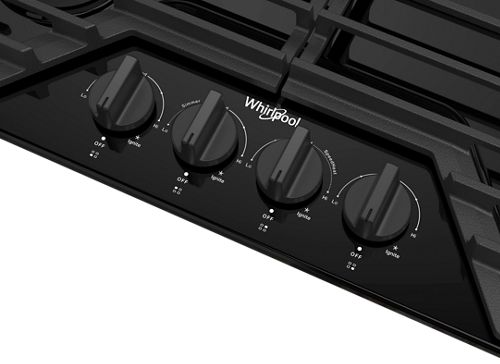

CONTROLS | |
Control Location | Front |
Control Type | Manual |
Knob Type | Plastic |
Certifications | |
ADA Compliant | Yes |
UL | Yes |
Electrical | |
Power Cord Included | Yes |
Hz | 60 |
Amps | 15 |
Specifications | |
Country Of Origin | USA |
Dimensions | |
Minimum Height | 4.75 " |
Maximum Height | 5.56 " |
Carton Width Inch | 34.69 " |
Carton Height Inch | 13.0 " |
Carton Depth Inch | 25.0 " |
Height | 5.56 " |
Net Weight | 56.1 lbs |
Cutout Width | 29.31 " |
Width | 30.0 " |
Depth | 21.0 " |
