Discontinued

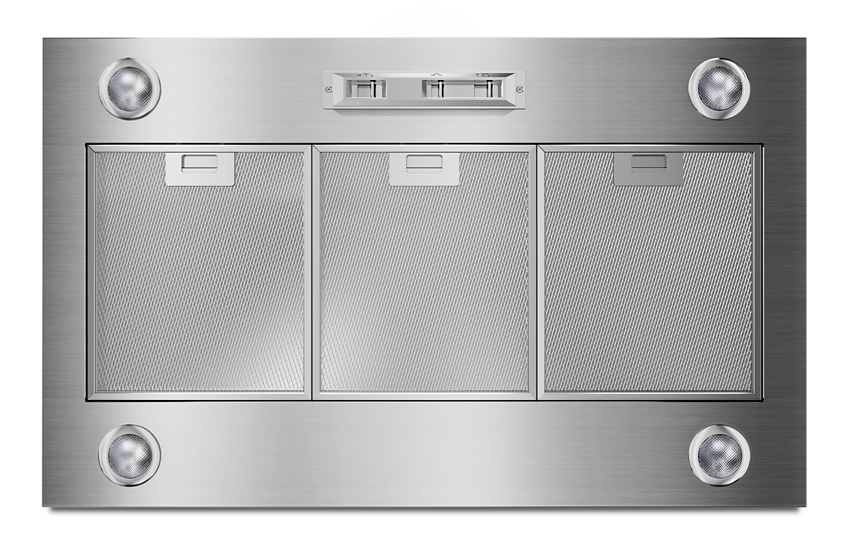

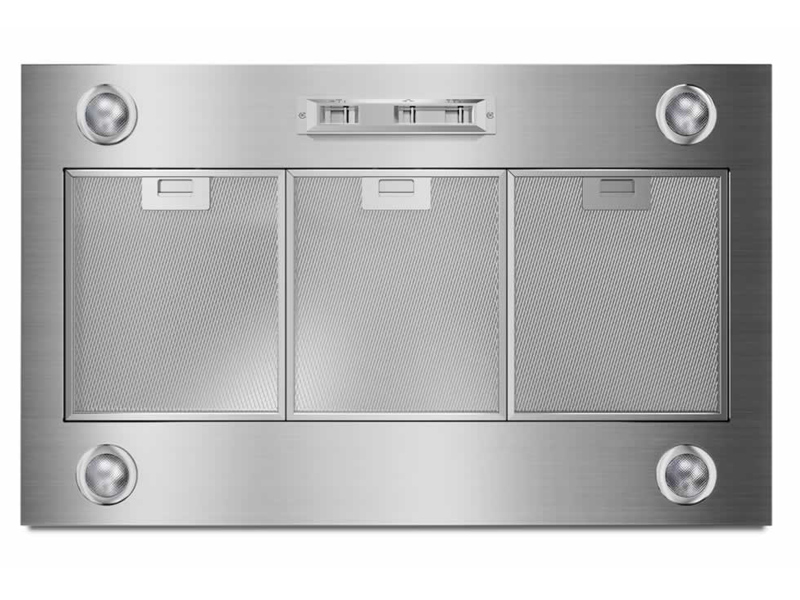

36" Whirlpool Custom Hood Liner - UXL6036YSS (W)

Category : Ventilation
SKU : UXL6036YSS (W)


Literature

Appliances to feed any family's appetite. :

Additional Features :

600 or 1,200 CFM Internal or In-Line Blower

The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent and cooking odours.

Compatible with Cooking Surfaces up to 108,000 BTUs

This luxury custom hood liner is designed to withstand high heat outputs of up to 108,000 BTUs.

Four Halogen Lights with Night-Light Setting

Twice as energy efficient and long lasting as incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above. They include a "dim" setting that can serve as a low-level light when the hood is not in use.

Dishwasher-Safe Premium Mesh Filters

These premium mesh filters, which effectively capture smoke, grease and cooking odors as they're drawn through the hood, can be easily cleaned in the dishwasher.

10-Inch Round Exterior Venting

Large-diameter venting that enables quiet airflow for efficient performance.

Three Fan Speed Settings

Three different settings on this luxury custom hood liner allow you to control the ventilation level for optimum performance and energy efficiency.

Hidden Slide Controls

Thanks to concealed slide controls, this custom hood liner's exterior is sleekly minimal, allowing you to achieve a more understated look.

Auto On (Heat Sensor) Feature

The intuitive auto on (heat sensor) feature protects against high temperatures. When excessive amounts of heat are detected, the sensor activates to increase to the maximum setting, and turns off when temperatures subside.

Dimensions
Depth55.88 cm, 22.0 in
Height29.21 cm, 11-1/2 in
Width91.12 cm, 35-7/8 in
Configuration and Overview
Hood TypeCustom Hood Liners
Size91.44 cm, 36 in
DETAILS
Night LightYes
Night Light TypeHalogen
Number of Night Light Settings2
Number of Task Light Settings2
Task Light TypeHalogen
Task LightingYes
VENTILATION SYSTEM
Duct DirectionVertical
Duct Outlet Size10
Duct TypeRound
FiltersDishwasher-Safe Grease Filters
|Number of Speeds3
