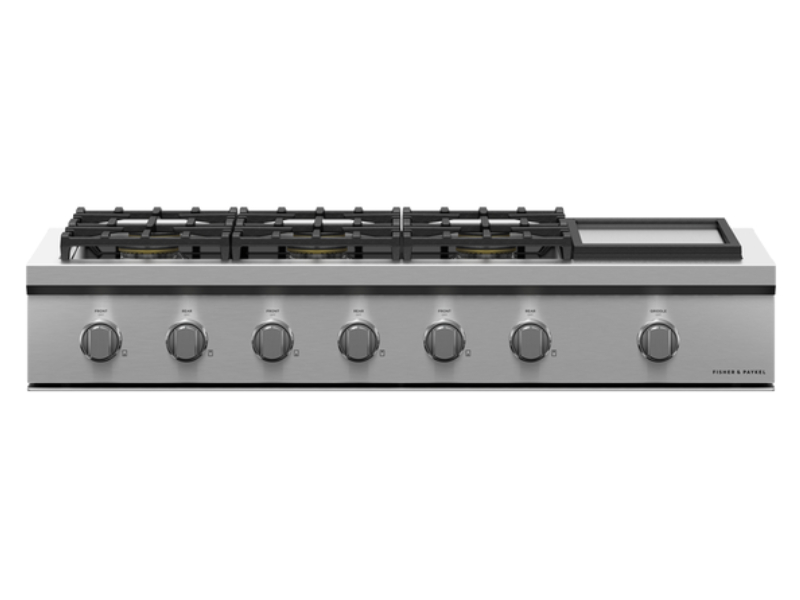

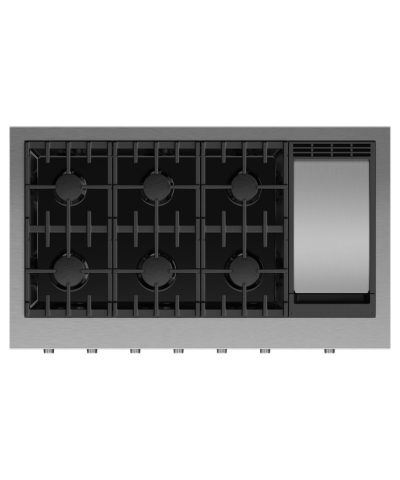

A powerful six burner rangetop with Professional styling and the additional cooking flexibility of a stainless steel griddle.
Overview
- Griddle with burners that deliver up to 23,500 BTU heat per burner, for seriously fast boiling
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from grilled cheese to quesadillas
- Made from quality materials and real stainless steel
Features and Benefits
Cooktop power

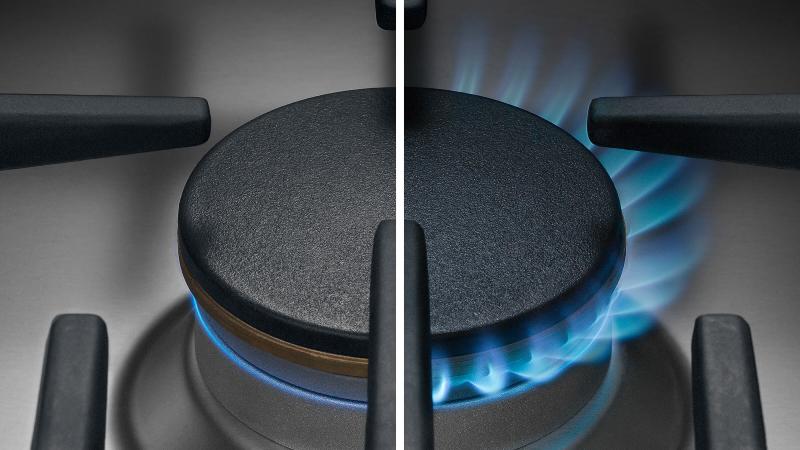

Sealed Dual Flow Burners™ deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control

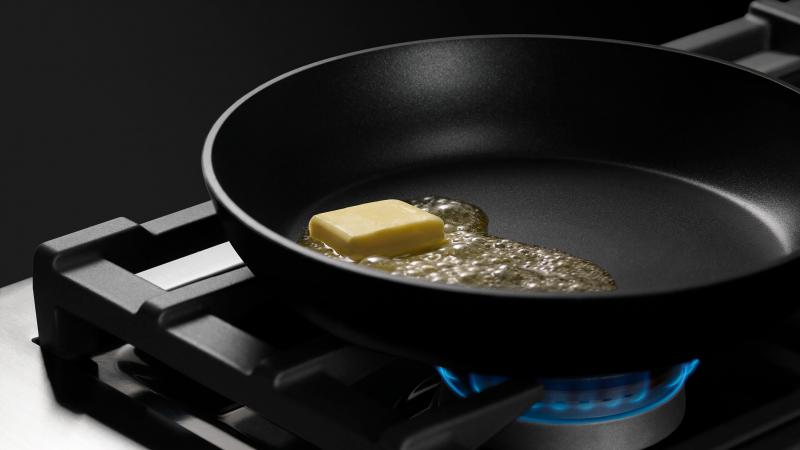

From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility

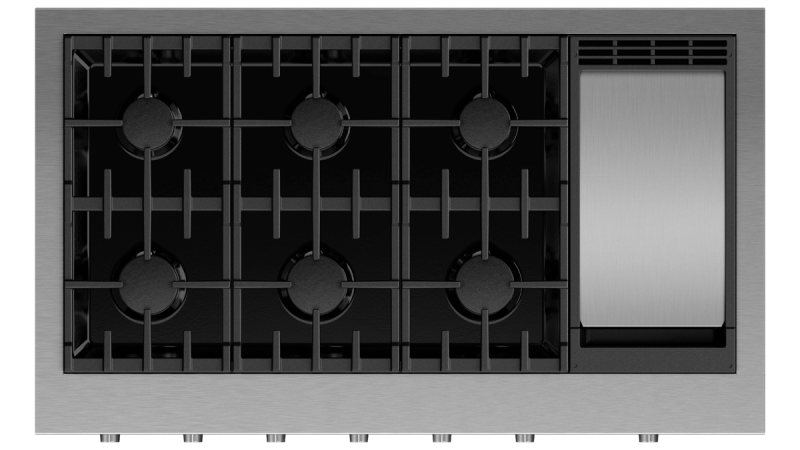

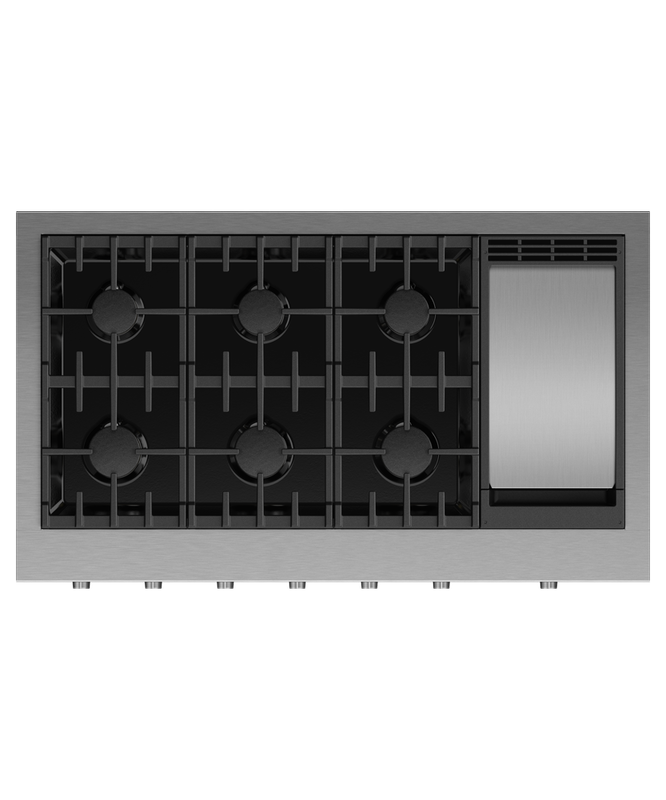

The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
Easy to clean
These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Information at a glance

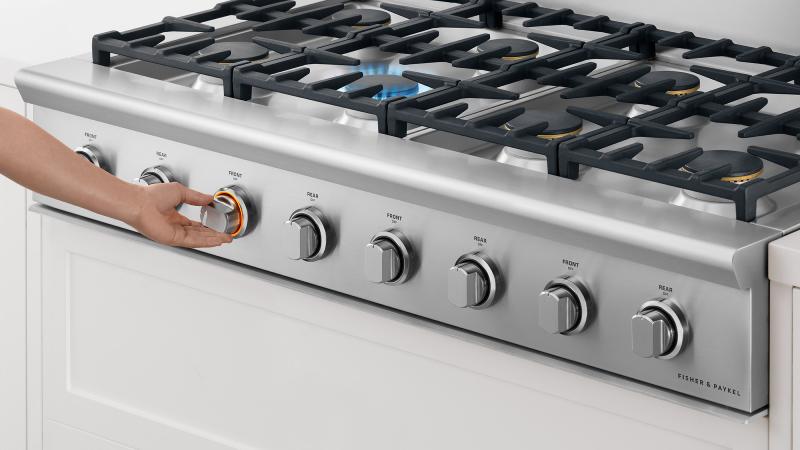

LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
DESIGN QUALITY

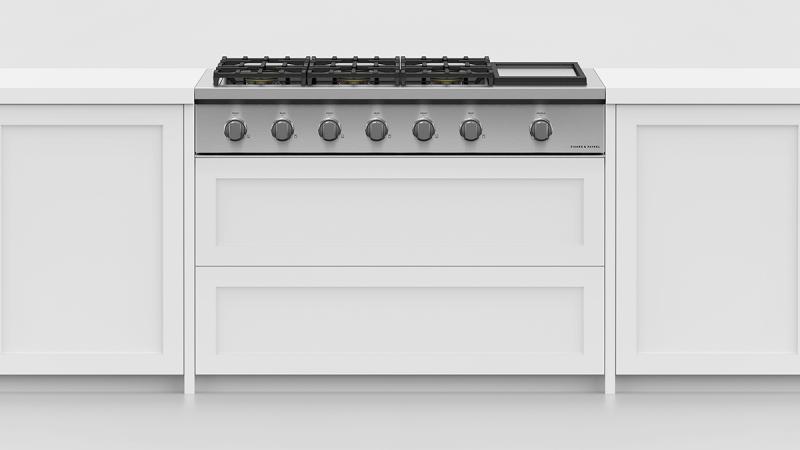

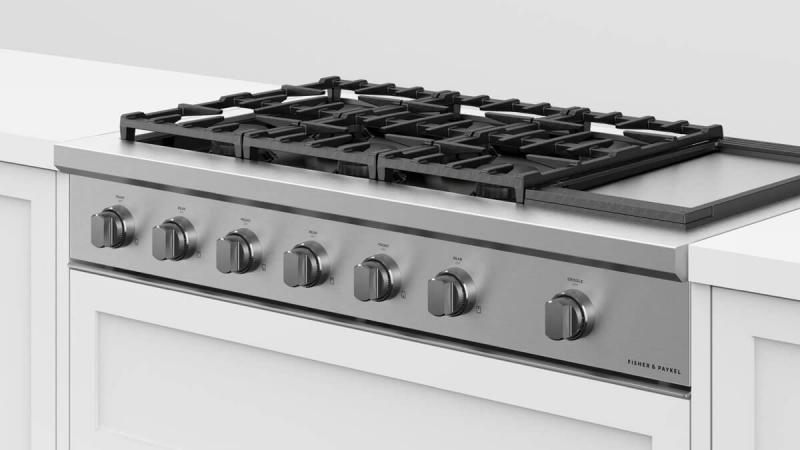

This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
| Burner ratings | |
|---|---|
| Max burner power | Yes |
| Power back centre | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Power griddle | 18000BTU |
| Total cooktop power | 134000BTU |
| Burners | |
| Number of Burner | 6 |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| CONTROLS | |
| Metal illuminated dials | Yes |
| Star K Certification | Yes |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6 to 9 W.C |
| Performance | |
| Auto re-ignition system | Yes |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | Yes |
| Simmer on all burners | 140 |
| Power Requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product Dimensions | |
| Depth | 28 |
| Height | 8 5⁄16 |
| Width | 47 7⁄8 |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| SAFETY | |
| ADA compliant | Yes |
| Warranty | |
| Parts and labour | Limited 2 years |
